Keyless Entry System - Rear

Access/Start Authorization System Overview

Keyless entry system - rear

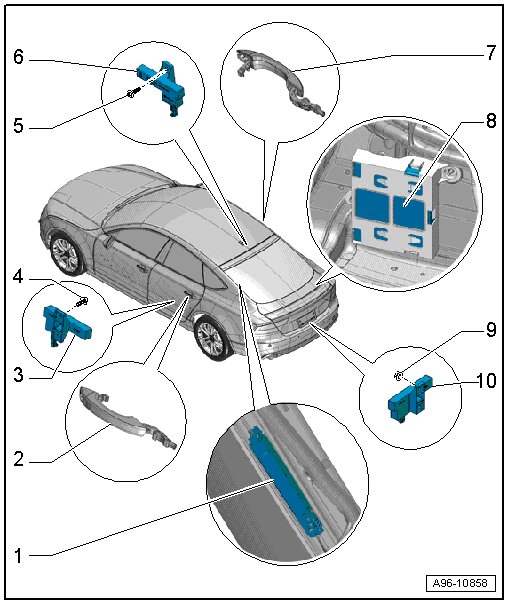

1 - Antenna amplifier 2 -R111-
• With Central locking and anti-theft alarm system antenna -R47-
• Located on the D-Pillar, top left

2 - Left rear exterior door handle touch sensor -G417-

3 - Left access/start authorization antenna -R200- => [ / similar ] See Image Below.

6 - Right access/start authorization antenna -R201- => [ / similar ] See Image Below.

7 - Right rear exterior door handle touch sensor -G418-

8 - Comfort system central control module -J393-

10 - Access/start authorization antenna 2 in vehicle interior -R139- => See Image Below.


Left access/start authorization antenna -R200- / Right access/start authorization antenna -R201- similar






• Located in door assembly

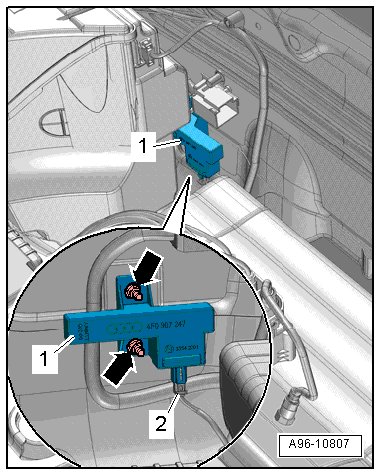

Access/start authorization antenna 2 in vehicle interior -R139-






• Located under luggage compartment floor
