Arm/Disarm Switch: Service and Repair

Alarm System Deactivation Switch (E217)

Removing






- Remove the front door trim.

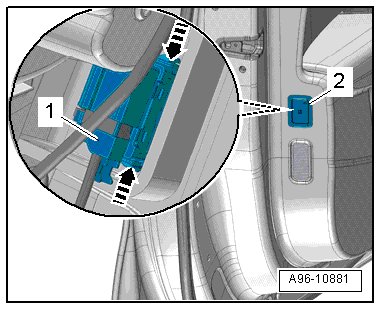

- Disconnect the electrical connector - 1 -.

- Releases the springs - arrows - and remove the switch - 2 - from the door trim panel.

Installing

Install in reverse order of removal. Note the following:

- Install the front door trim.
