Rear Door Window

Rear Door Window

Special tools, testers and auxiliary items required

• Use the removal tool (T40231) for standard windows.

• Use the release tool (T40254) for tinted windows.

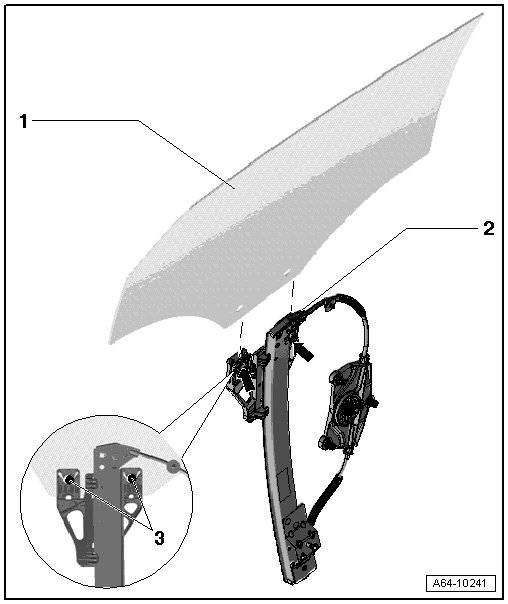

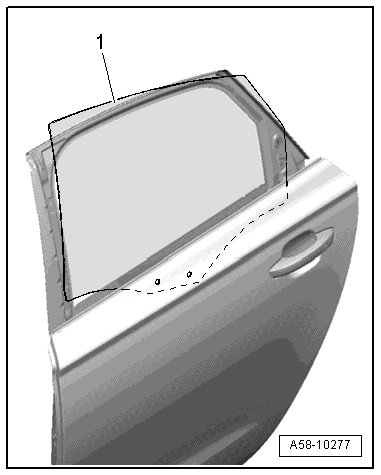

1 Door window

• Door trim removed.

• Loosen the door window frame trim near the C-Pillar.

• C-pillar trim removed. Refer to => [ Rear B-Pillar and C-Pillar Trim ] Rear B-Pillar and C-Pillar Trim

• Door cover removed, refer to=> [ Inner Door Panel Cover ] Inner Door Panel Cover

• Window regulator motor removed

• Install the door window in the removed position and insert the special tool.

2 Window Regulator

3 Bolts

• Two-part

Remove the door window with standard glass






- Remove the door trim panel.

- Remove the inner window shaft strip. Refer to => [ Outer and Inner Window Shaft Strip Assembly Overview ] Outer and Inner Window Shaft Strip Assembly Overview.

- Remove the inner door panel cover. Refer to => [ Inner Door Panel Cover ] Inner Door Panel Cover.

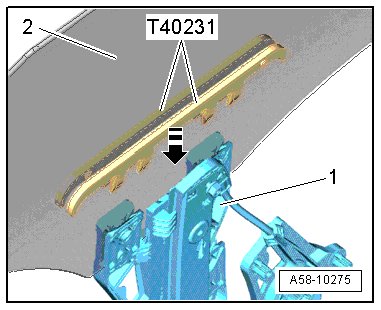

- Insert the removal tool (T40231) on both side of the door window and push it downward on the mount on the window regulator - 1 -.

- The mount on the window regulator bends open so that the door window can bee lifted upward by the mounting pin.

- Remove the door window - 2 - upward out of the mount and remove it from the door.

Removing a door window with tinted glass

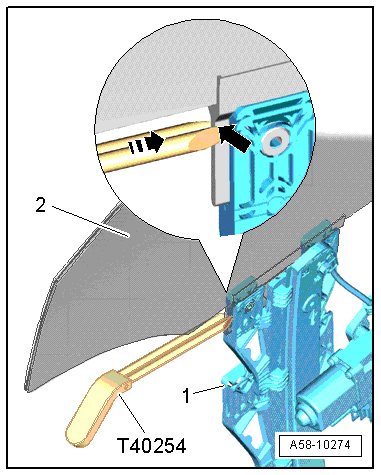

- Insert the release tool (T40254) in direction of arrow completely onto the adapter - arrow -.

- The mount on the window regulator bends open so that the door window can bee lifted upward by the mounting pin.

Door Window, Installing

• The mounting pins must be pushed in first with new door windows with standard glass.

- Install the mounting pins - 2 - in the center of the door window - 1 - and push the clamping pin in so that it is flush.






- Insert door window - 1 - diagonally toward back in door window guide.






- Line up the door window inside the window guides and push it down. Make sure the door window move exactly into the front and rear mount.

- Press window down into window regulator mount.

- The mounting pins will audibly lock into the mount.
