Overview of Ground Connections (5-door Models (Avant))

Ground Connections

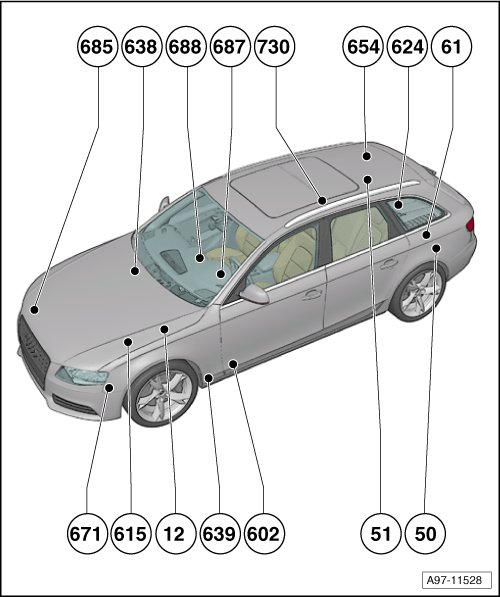

Overview of Ground Connections (5-door models (Avant))



Note:
• Overview of Ground Connections - Sedan (4-door models) => [ Overview of Ground Connections (4-door models (Sedan)) ] Overview of Ground Connections (4-door Models (Sedan))






(685) - Ground Connection 1 (on right front long member)
• Component Location:

(638) - Ground Connection (on right A-pillar)
• Component Location:

(688) - Ground Connection 2 (on center tunnel)
• Component Location:

(687) - Ground Connection 1 (on center tunnel)
• Component Location:

(730) - Ground Connection 1 on right rear wheel housing
• Component Location:

(654) - Ground Connection (on right D-pillar)
• Component Location:

(624) - Ground Connection (near starter battery)
• Component Location:

(61) - Ground Connection (on left C-pillar)
• Component Location:

(50) - Ground Connection (in luggage compartment, left)
• Component Location:

(51) - Ground Connection (in luggage compartment, right)
• Component Location:

(602) - Ground Connection (in front left footwell)
• Component Location:

(639) - Ground Connection (on left A-pillar)
• Component Location:

(12) - Ground Connection (in engine compartment, left)
• Component Location:

(615) - Ground Connection, on left suspension strut
• Component Location:

(671) - Ground Connection 1 (on left front long member)
• Component Location:






(671) - Ground Connection 1 (on left front long member)
Component Location:
On long member, near front left wheel housing
Torque Setting:
9 Nm





(615) - Ground Connection, on left suspension strut
Component Location:
On front left suspension strut chamber
Torque Setting:
9 Nm





(12) - Ground Connection (in engine compartment, left)
Component Location:
Between suspension strut chamber and plenum chamber,
front left
Torque Setting:
9 Nm





(685) - Ground Connection 1 (on right front long member)
Component Location:
On right front long member, behind wheel housing liner
Torque Setting:
20 Nm





(639) - Ground Connection (on left A-pillar)
Component Location:
Behind left lower A-pillar trim
Torque Setting:
9 Nm





(638) - Ground Connection (on right A-pillar)
Component Location:
Behind right lower A-pillar trim
Torque Setting:
9 Nm






(687) - Ground Connection 1 (on center tunnel)
Component Location:
On left side of centre tunnel
Torque Setting:
9 Nm





(688) - Ground Connection 2 (on center tunnel)
Component Location:
On right side of centre tunnel
Torque Setting:
9 Nm





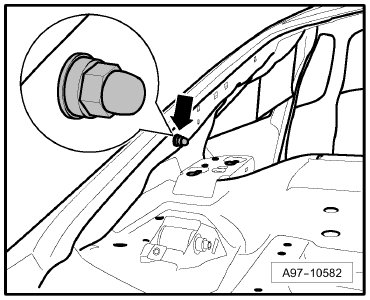

(730) - Ground Connection 1 (on right rear wheel housing) -Arrow-
Component Location:
Near rear right wheel housing, front, under panel trim
Torque Setting:
9 Nm





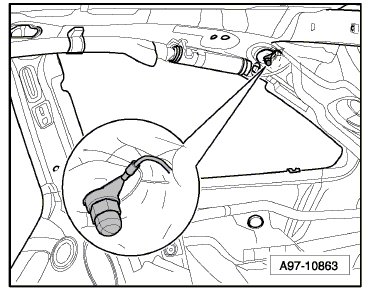

(61) - Ground Connection (on left C-pillar) -Arrow-
Component Location:
Under left C-pillar trim, near rear window
Torque Setting:
9 Nm





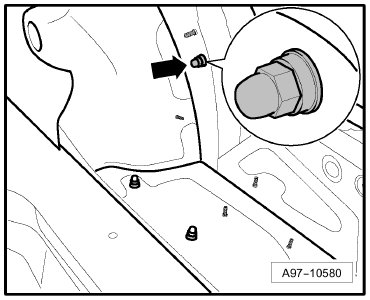

(62) - Ground Connection (on right C-pillar) -Upper Arrow-
Component Location:
Under right C-pillar trim, near rear window
Torque Setting:
9 Nm





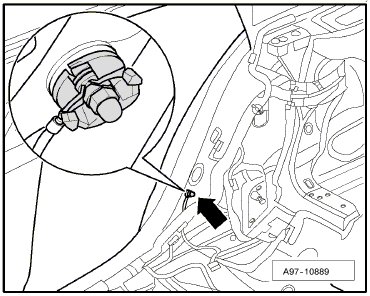

(50) - Ground Connection (in luggage compartment, left) -Arrow-
Component Location:
Under side panel trim, in left luggage compartment, near
wheel housing
Torque Setting:
9 Nm





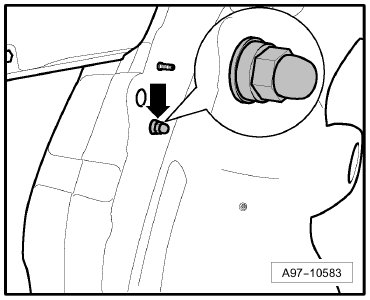

(51) - Ground Connection (in luggage compartment, right) -Arrow-
Component Location:
Under side panel trim, in right luggage compartment,
near wheel housing
Torque Setting:
9 Nm





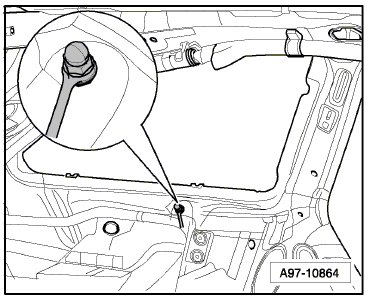

(61) - Ground Connection (on left C-pillar) -Arrow-
Component Location:
Under left side panel trim, behind C-pillar
Torque Setting:
9 Nm





(654) - Ground Connection (on right D-pillar)
Component Location:
Under upper right D-pillar trim
Torque Setting:
9 Nm





(624) - Ground Connection (near starter battery)
Component Location:
Below the floor panel in the luggage compartment, right
beside starter battery
Torque Setting:
18 Nm





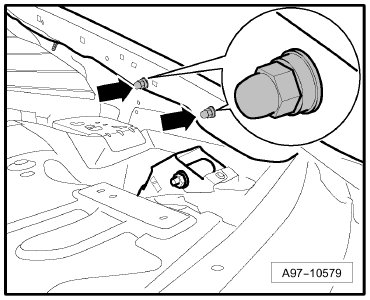

(602) - Ground Connection (in front left footwell) -Arrow-
Component Location:
Under carpeted floor in driver's footwell
