Relay /fuse panel B -SB- through October 2011

Fuses

Relay /fuse panel B -SB- through October2011


Component Location Relay/Fuse Panel B -SB- for models with left-hand drive,
through October 2011:
In Electronics Box (in plenum chamber, driver's side)
1) Only models with cylinder 4 diesel engine
2) Only models with cylinder 6 diesel engine
3) Only models with cylinder 6 gasoline engine

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .






K - Strip fuse for engine glow plugs -S39- (1) , 60 A

K - Strip fuse for engine glow plugs -S39- (2) , 80 A

K - Secondary Air Injection (AIR) Pump Fuse -S130- (3) , 50 A

L - NOX Sensor Fuse -S360- (2) , 5 A

ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

Component Location Relay/Fuse Panel B -SB- for models with right-hand drive,
through October 2011:
In Electronics Box (in plenum chamber, driver's side)
4) Only models with cylinder 4 diesel engine
5) Only models with cylinder 6 diesel engine
6) Only models with cylinder 6 gasoline engine

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive .






K - Strip fuse for engine glow plugs -S39- (4) , 60 A

K - Strip fuse for engine glow plugs -S39- (5) , 80 A

K - Secondary Air Injection (AIR) Pump Fuse -S130- (6) , 50 A

L - NOX Sensor Fuse -S360- (5) , 5 A

ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

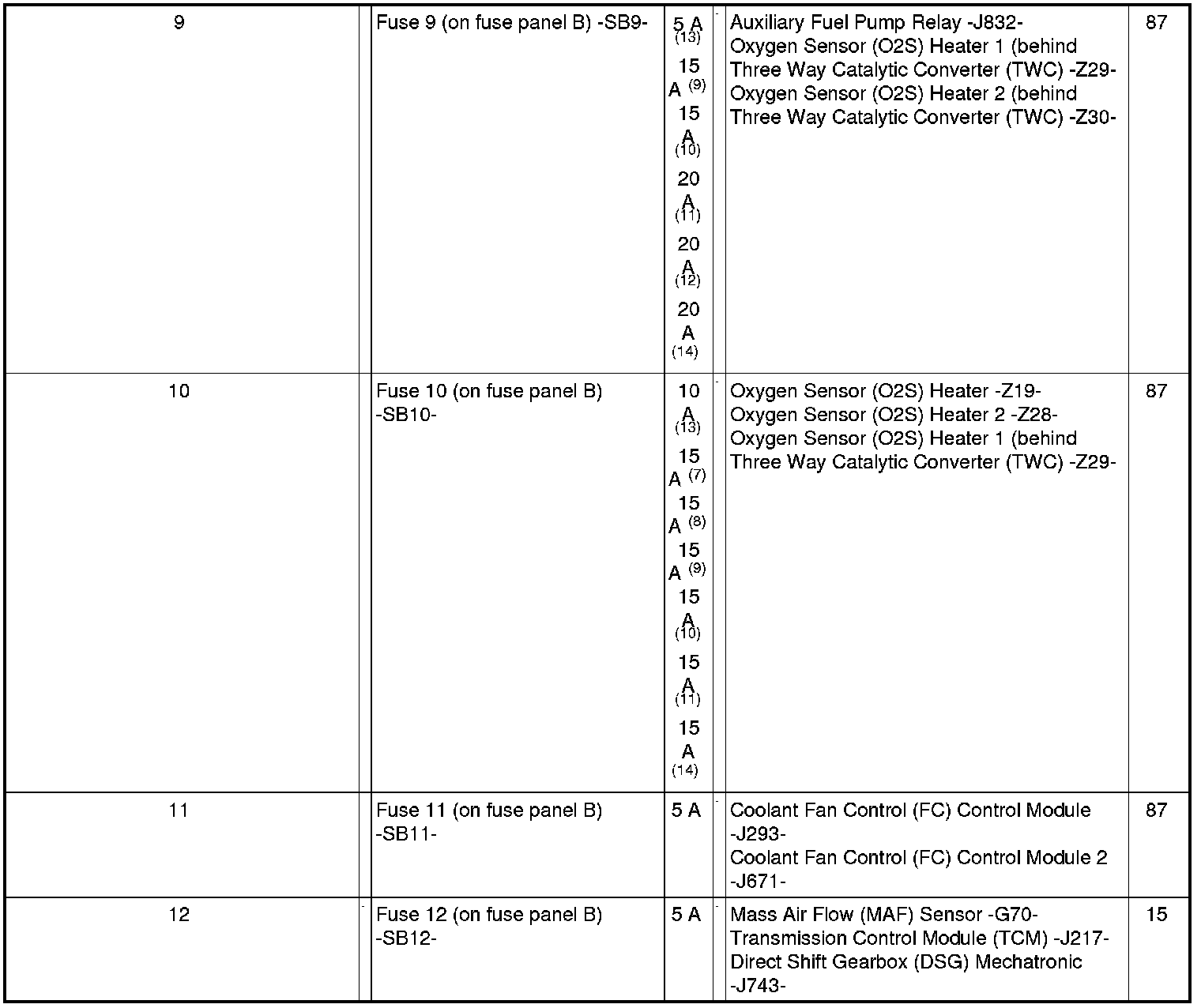

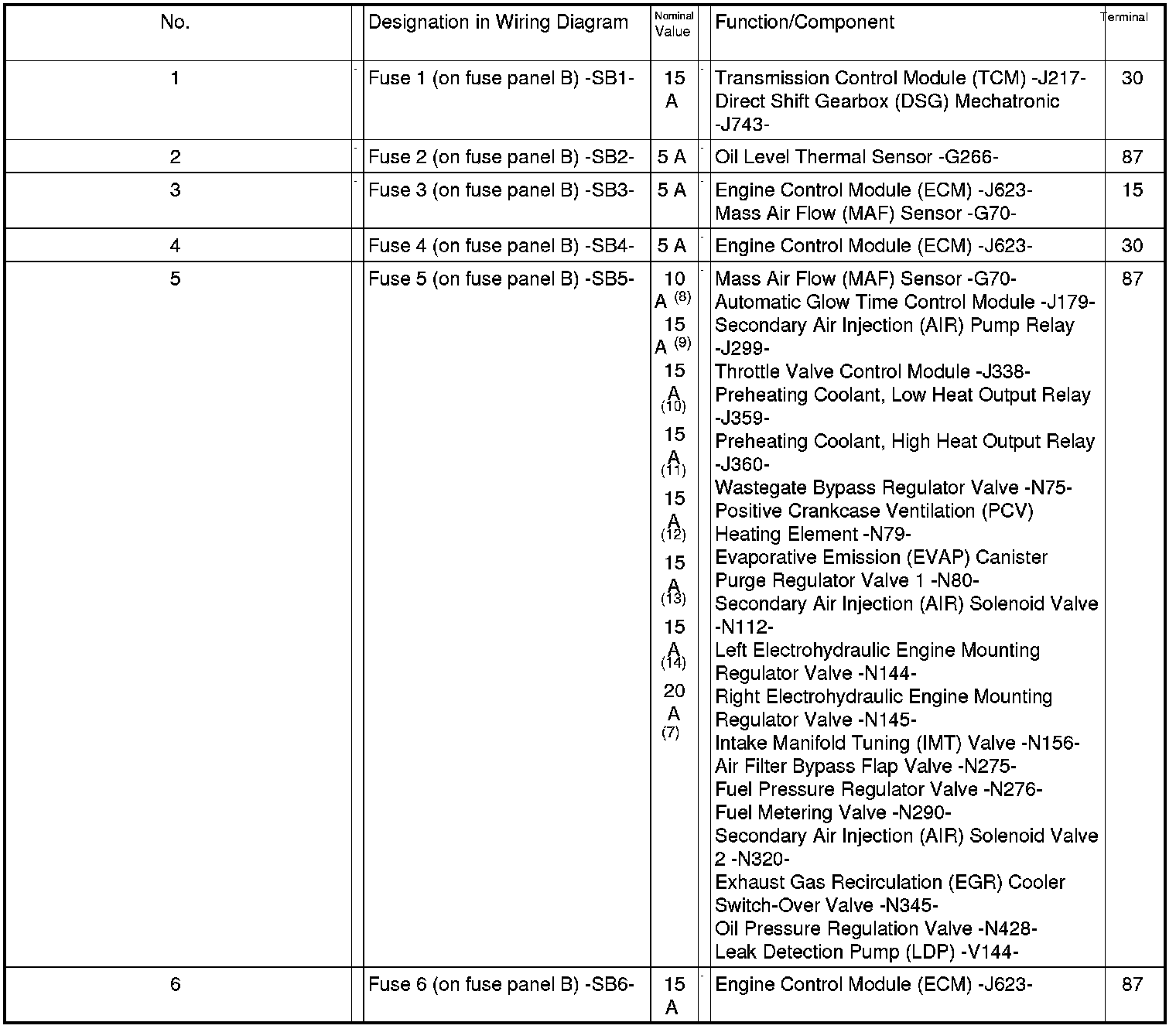

Fuses in Fuse Carrier ST1 on Fuse Panel B -SB- (black)


7) Only models with cylinder 4 gasoline engine (1.8L TFSI)
8) Only models with cylinder 4 gasoline engine (2.0L TFSI)
9) Only models with cylinder 6 gasoline engine (3.2L FSI)
10) Only models with cylinder 6 gasoline engine (3.0L TFSI)
11) Only models with cylinder 4 diesel engine (2.0L TDI)
12) Only models with cylinder 4 diesel engine (2.0L TDI -
EU3)
13) Only models with cylinder 4 diesel engine (2.0L TDI -
Generation 2)
14) Only models with cylinder 6 diesel engine
