Relay /Fuse Panel F -SF- through Model year 2009

Fuses

Relay /Fuse Panel F -SF- through model year 2009


Component Location Relay /Fuse Panel F -SF- through model year 2009:
In luggage compartment, behind side trim on right





ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, Fuses => [ Fuses in Fuse Carrier ST2 on (black) ]

ST3 - Fuse Carrier 3, Fuses => [ Fuses in Fuse Carrier ST3 on (brown) ]

ST4 - Fuse Carrier 4, Fuses => [ Fuses in Fuse Carrier ST4 on (red) ]

ST5 - Fuse Carrier 5, Fuses => [ Fuses in Fuse Carrier ST5 on (black) ]

H - Heated Rear Window Fuse -S41- => [ Single Fuse on ]

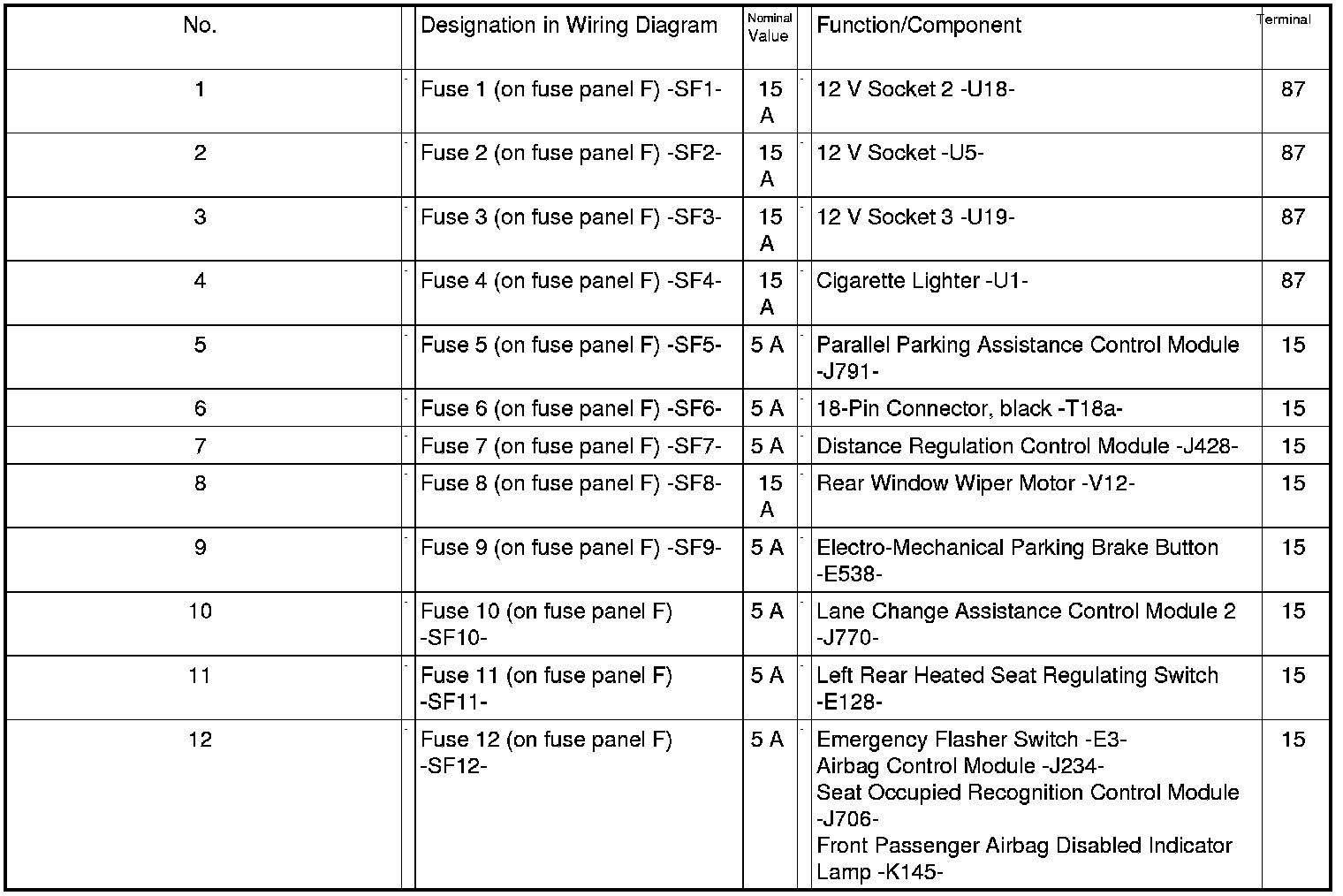

Fuses in Fuse Carrier ST1 on Fuse Panel F -SF- (black)

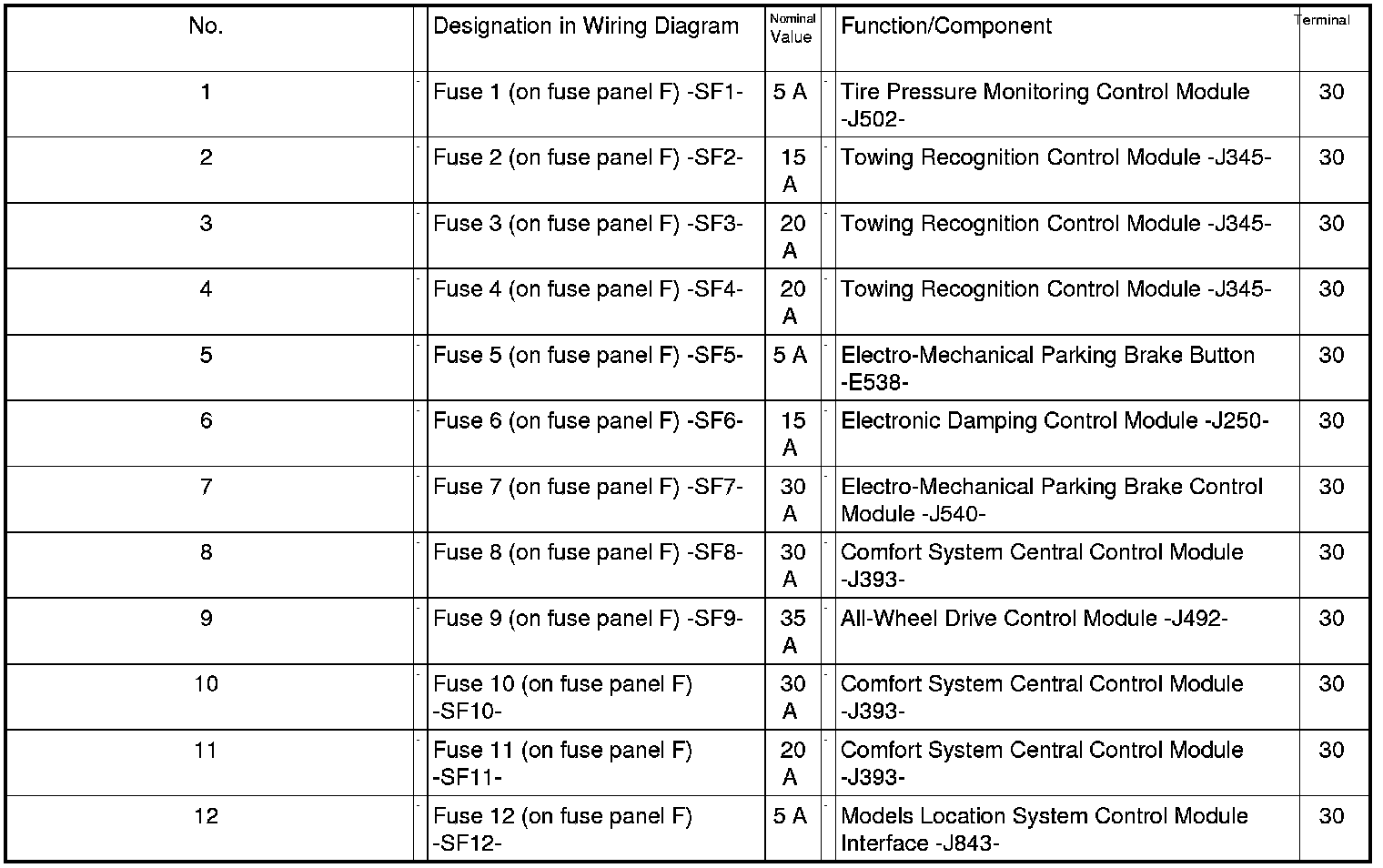

Fuses in Fuse Carrier ST2 on Fuse Panel F -SF- (black)

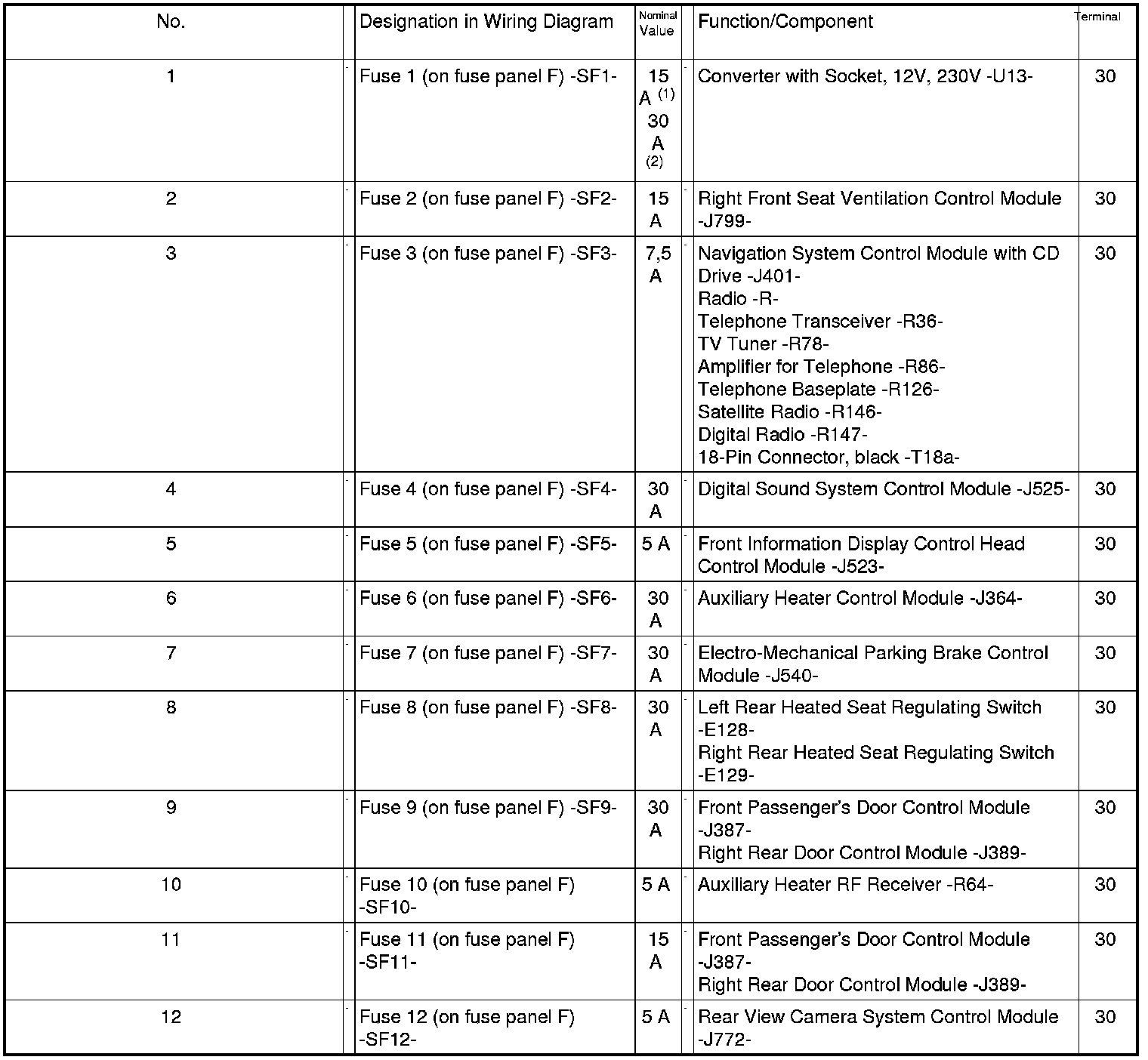

Fuses in Fuse Carrier ST3 on Fuse Panel F -SF- (brown)


1) Not applicable, phased-in modification
2) Phased-in modification

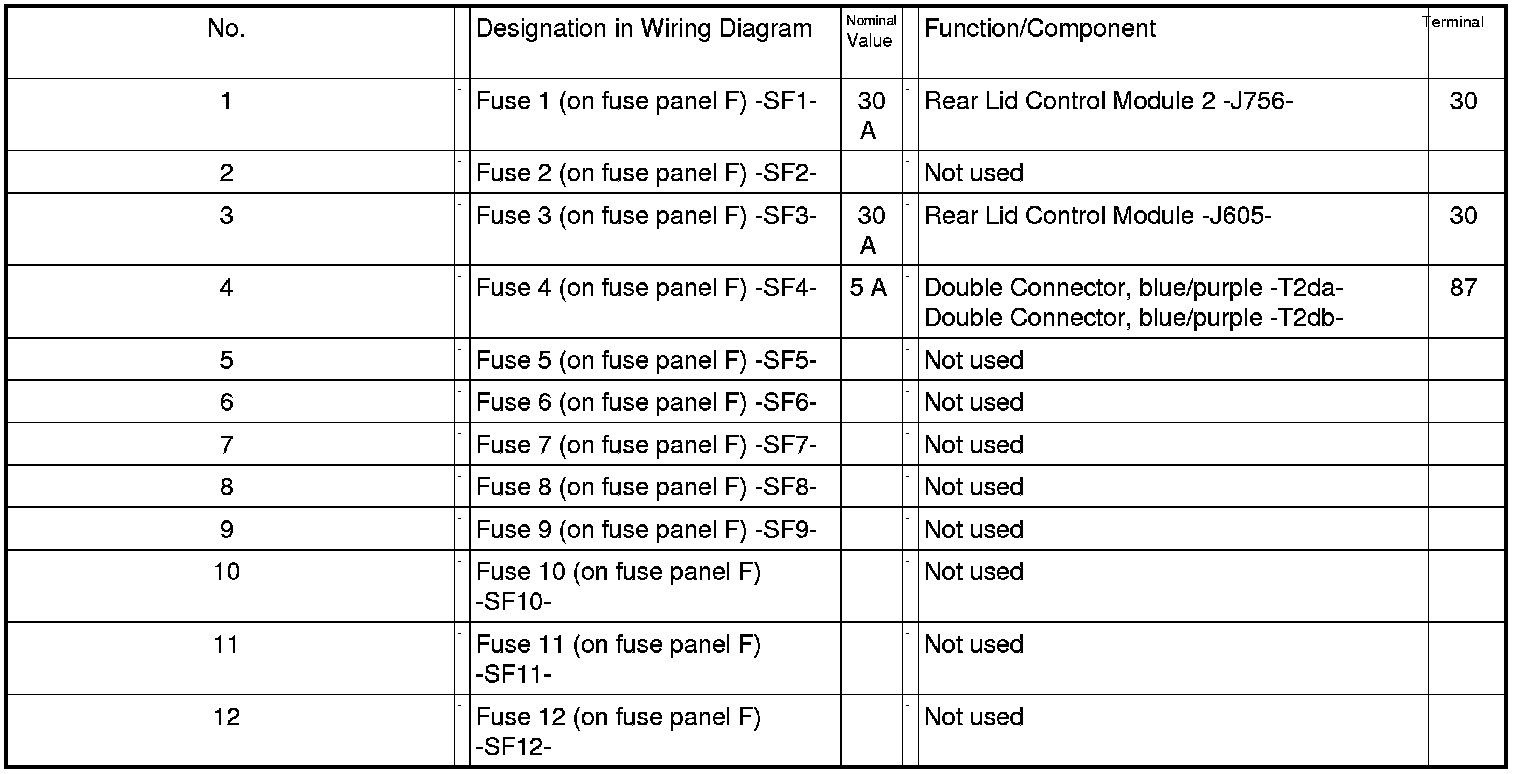

Fuses in Fuse Carrier ST4 on Fuse Panel F -SF- (red)

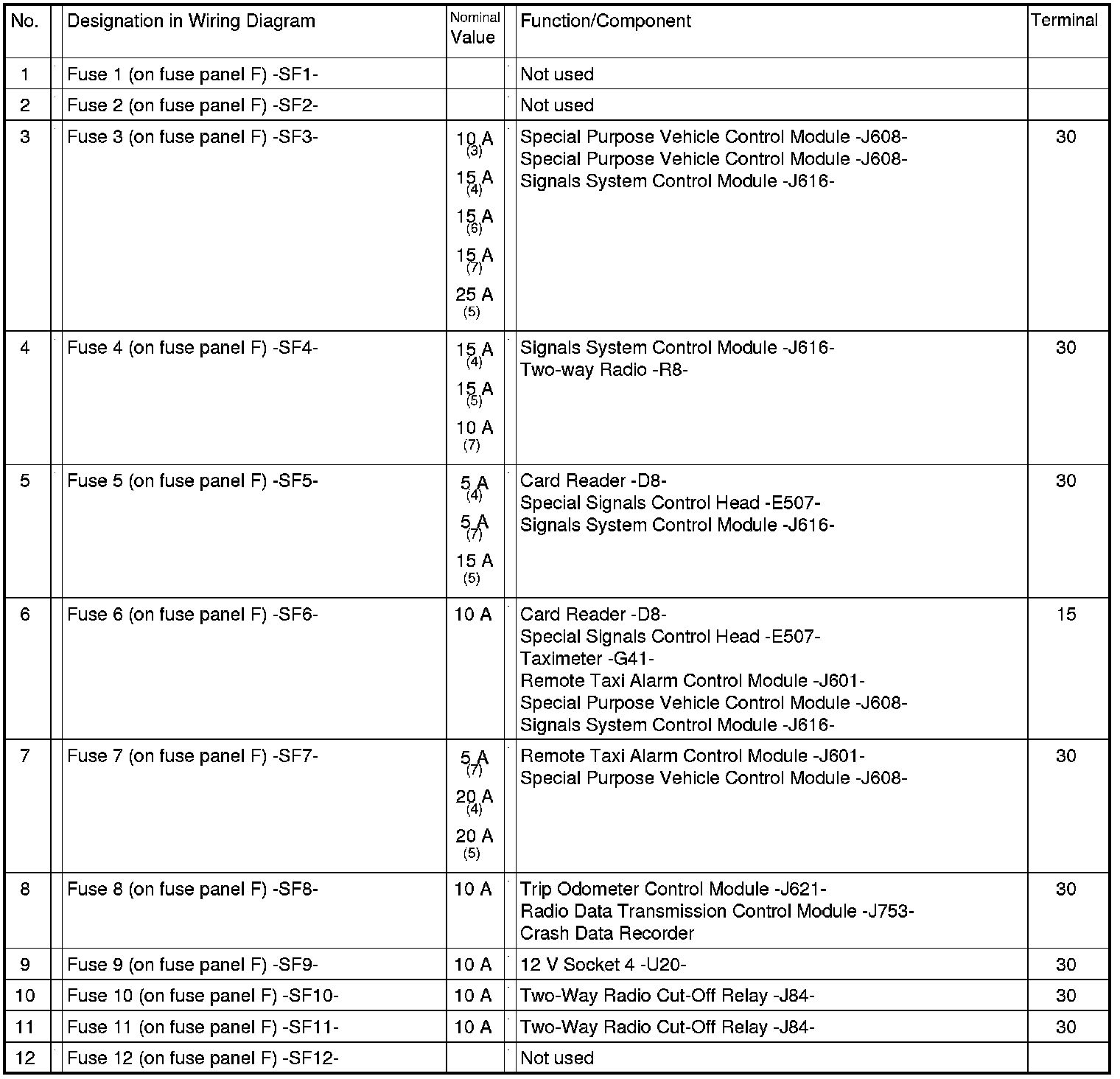

Fuses in Fuse Carrier ST5 on Fuse Panel F -SF- (black)


3) Only models with driving school equipment (F5F)
4) Only civil models (F4J, F4Z)
5) Only special models (F4G, F4Q, F4X)
6) Only models with preparation for disabled persons (F6M)
7) Only models with rental car-equipment (F4E, F4F)

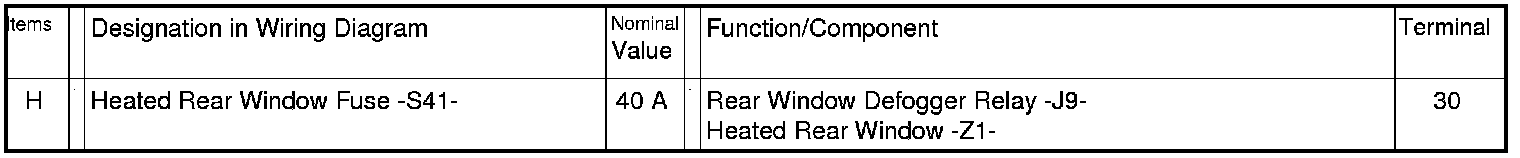

Single Fuse on Fuse Panel F -SF-
