Fuse Panel C -SC- from MY 2010

Fuses

Fuse Panel C -SC- from model year 2010

Component Location Fuse Panel C -SC- from model year 2010 for models
with left-hand drive:
Below driver's instrument panel cover

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .

ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, Fuses => [ Fuses in Fuse Carrier ST2 on (brown) ]

ST3 - Fuse Carrier 3, Fuses => [ Fuses in Fuse Carrier ST3 (red) ]

Component Location Fuse Panel C -SC- from model year 2010 for models
with right-hand drive:
Below driver's instrument panel cover

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive .

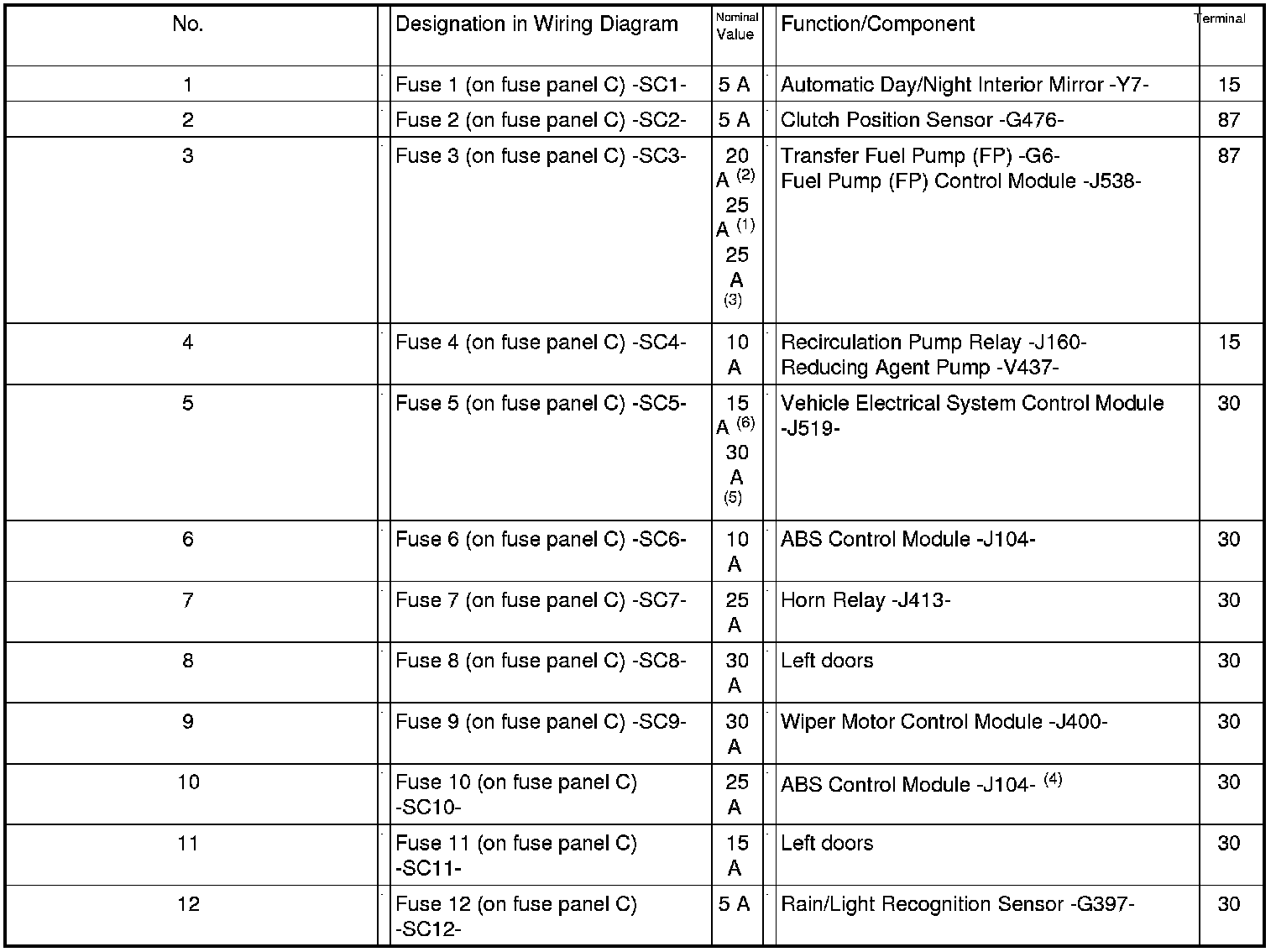

Fuses in Fuse Carrier ST2 on Fuse Panel C -SC- (brown)

1) Only models with gasoline engine
2) Only models with diesel engine (without J538)
3) Only models with diesel engine (with J538)
4) Only models with left-hand drive
5) Only models without seat ventilation
6) Only models with seat ventilation

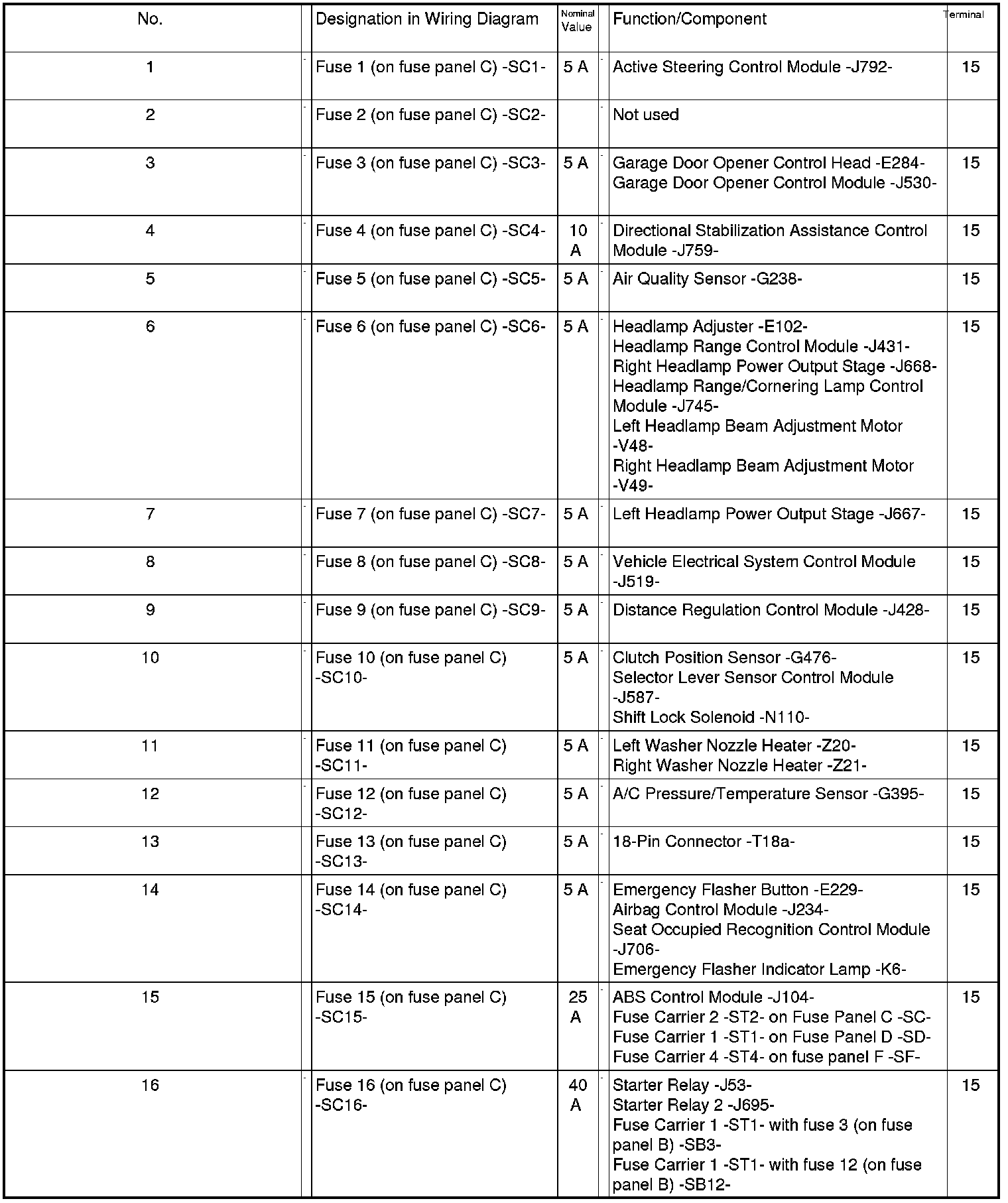

Fuses in Fuse Carrier ST3 Fuse Panel C -SC- (red)
