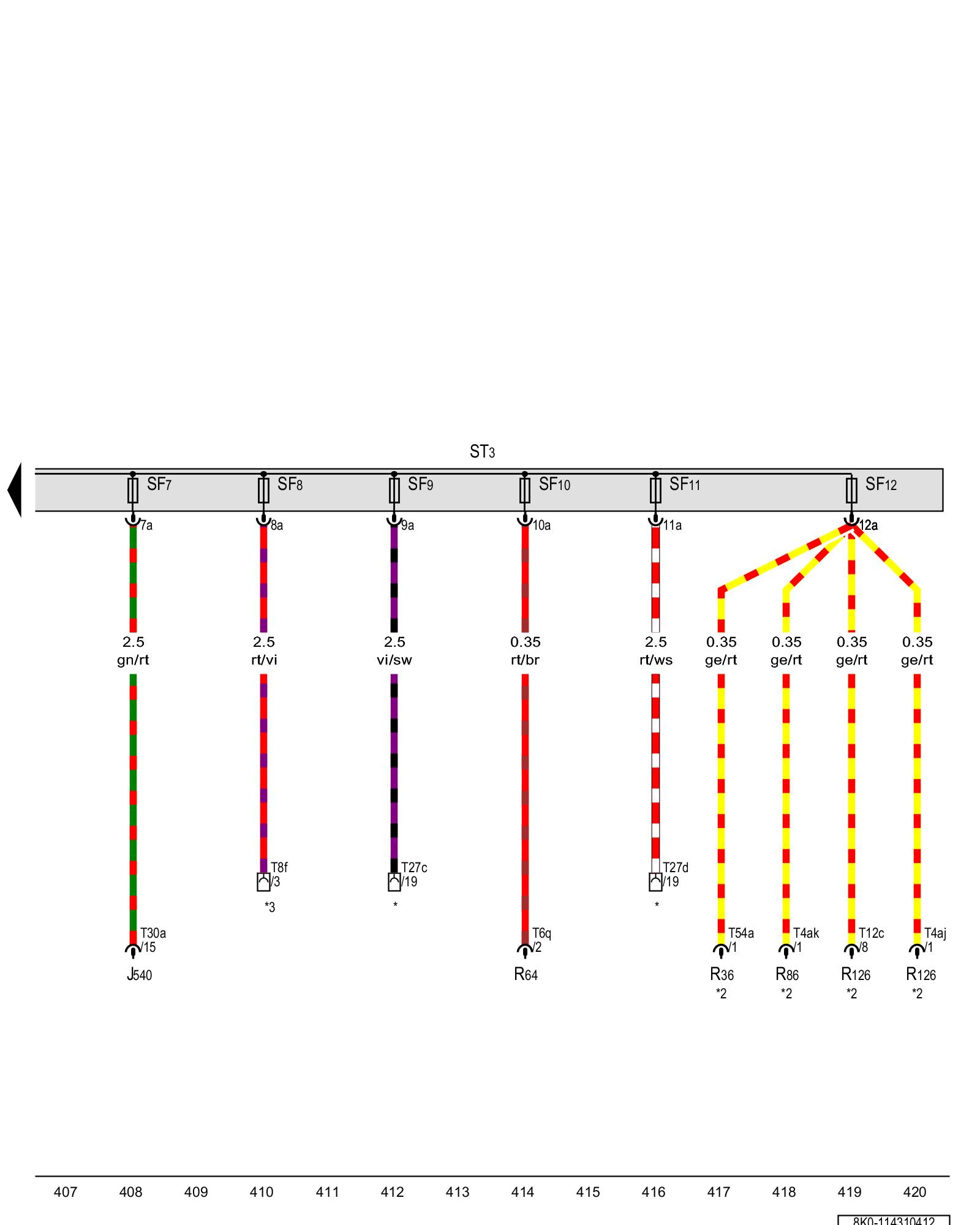

Diagram 114/31 (Tracks 407-420)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel 3





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J540 - Electromechanical parking brake control module Overview of Control Modules in Rear part of vehicle - Sedan (4-door models)

R36 - Telephone transceiver Overview of Control Modules in Interior of Vehicle Locations

R64 - Auxiliary heater radio receiver

R86 - Cellular telephone amplifier Overview of Control Modules in Rear part of vehicle - Sedan (4-door models)

R126 - Telephone baseplate Locations

ST3 - Fuse panel 3

SF7 - Fuse 7 (on fuse panel F) Overview Of Fuses

SF8 - Fuse 8 (on fuse panel F) Overview Of Fuses

SF9 - Fuse 9 (on fuse panel F) Overview Of Fuses

SF10 - Fuse 10 (on fuse panel F) Overview Of Fuses

SF11 - Fuse 11 (on fuse panel F) Overview Of Fuses

SF12 - Fuse 12 (on fuse panel F) Overview Of Fuses

T4aj - 4-pin connector

T4ak - 4-pin connector

T6q - 6-pin connector

T8f - 8-pin connector, black

T12c - 12-pin connector

T27c - 27-pin connector, Right B-pillar, bottom

T27d - 27-pin connector

T30a - 30-pin connector

T54a - 54-pin connector

* - Refer to applicable convenience system wiring diagram

*2 - Depending on equipment

*3 - Refer to the applicable heated seats wiring diagram

Previous Diagram 114/30 (Tracks 393-406)

Next Diagram 114/32 (Tracks 421-434)
