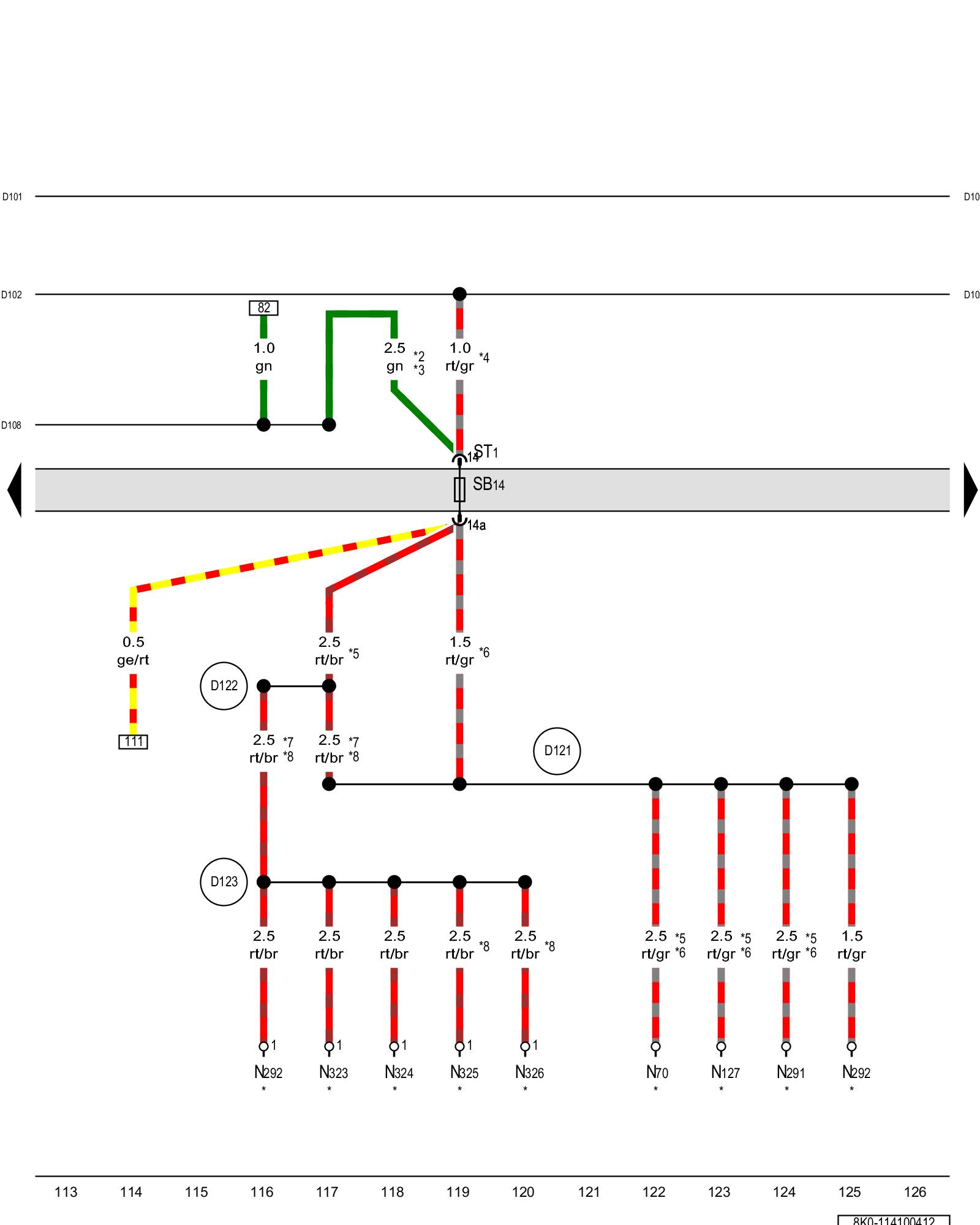

Diagram 114/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

N70 - Ignition coil 1 with power output stage Locations

N127 - Ignition coil 2 with power output stage Locations

N291 - Ignition coil 3 with power output stage Locations

N292 - Ignition coil 4 with power output stage Locations

N323 - Ignition coil 5 with power output stage Locations

N324 - Ignition coil 6 with power output stage Locations

N325 - Ignition coil 7 with power output stage Locations

N326 - Ignition coil 8 with power output stage Locations

ST1 - Fuse panel 1

SB14 - Fuse 14 (on fuse panel B) Overview Of Fuses

(D101) - Connection (1) (in engine compartment wiring harness)

(D102) - Connection (2) (in engine compartment wiring harness)

(D108) - Connection (6) (in engine compartment wiring harness)

(D121) - Connection (19) (in engine compartment wiring harness)

(D122) - Connection (20) (in engine compartment wiring harness)

(D123) - Connection (21) (in engine compartment wiring harness)

* - Refer to applicable engine wiring diagram

*2 - Only for vehicles with gasoline engine

*3 - 4.0 diameter possible

*4 - Only for vehicles with a diesel engine

*5 - 1,5 diameter possible

*6 - The color of the wires depends on vehicle equipment

*7 - Only in vehicles with 6-cylinder engine

*8 - Only in vehicles with 8-cylinder engine

Previous Diagram 114/9 (Tracks 99-112)

Next Diagram 114/11 (Tracks 127-140)
