Coolant Fan 400 W Or 600 W

Control modules in front part of vehicle

Coolant Fan 400 W or 600 W


Component Location:
On Cooler.

Note:
• Coolant Fan 2 -V177- Not for all engine
variants applicable.

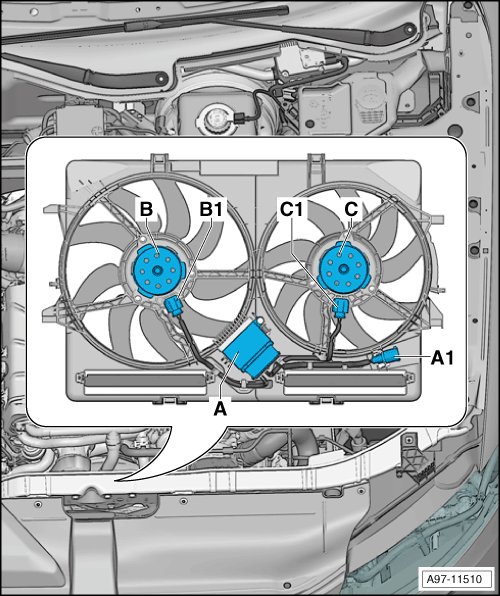

A - Coolant Fan Control (FC) Control Module -J293-

A1 - 4-Pin Connector

B - Coolant Fan -V7-

B1 - Connector for -V7-

C - Coolant Fan 2 -V177-

C1 - Connector for -V177-
