Fog Lamp Bulb (L46)/(L47)

Fog Lamp Bulb (L46)/(L47)

Removing






- Turn off the ignition and remove the key.

- Turn the headlamp switch to "0".

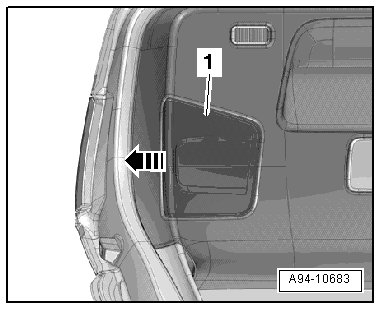

- Pull the cover - 1 - toward the outside of the vehicle - arrow -.

- Disconnect the connector - 1 -.






- Release the locking mechanism - 2 - and remove the bulb socket - 3 - from the housing.

- Remove the fog lamp light bulb - 4 -.

Installing

Install in reverse order of removal. Note the following:

- Insert the new bulb in the socket without touching the bulb with bare hands.
