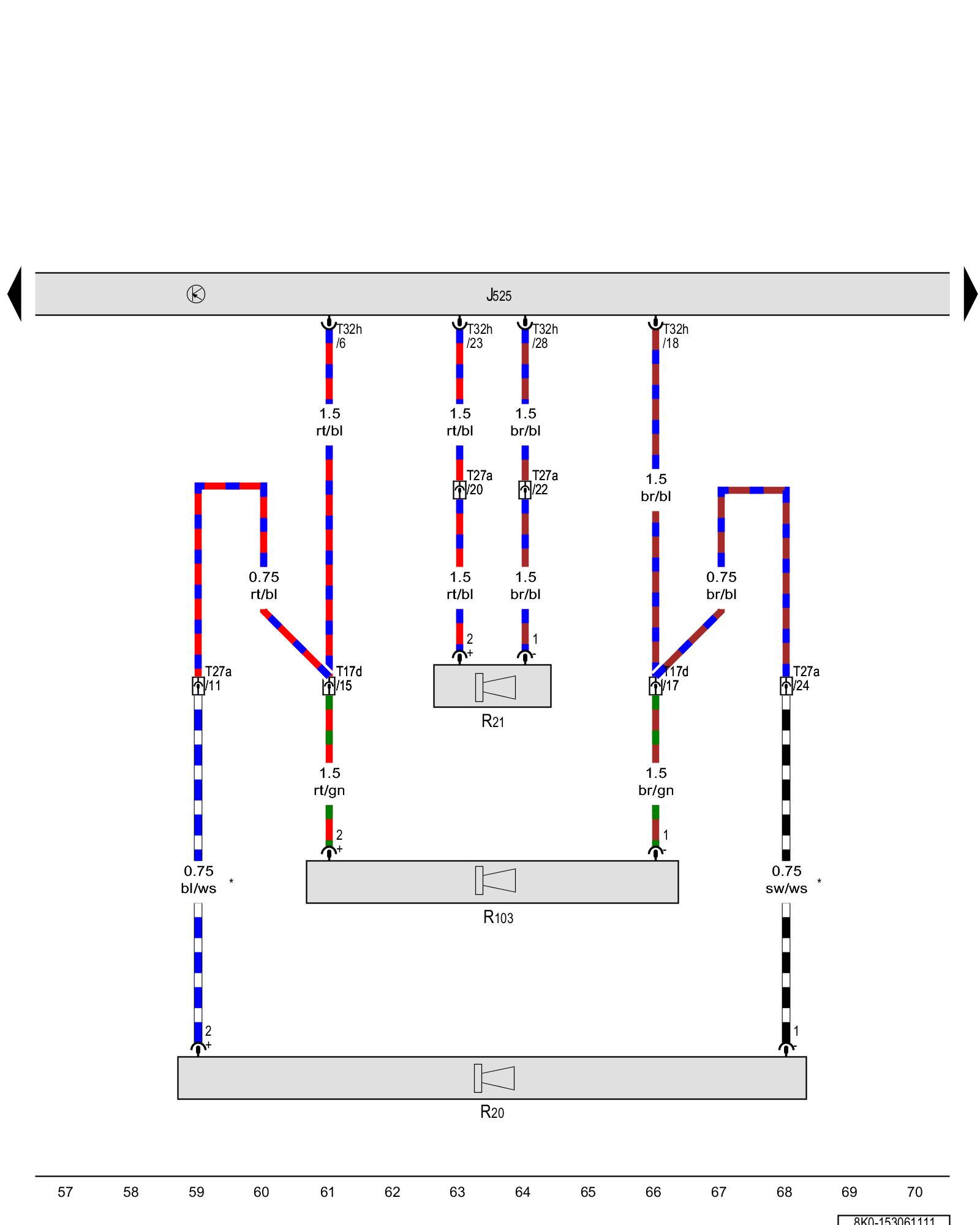

Diagram 153/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Left front treble speaker, Left front bass speaker, Left front midrange speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Overview of Control Modules in Rear part of vehicle - Sedan (4-door models)

R20 - Left front treble speaker Radio Component Locations

R21 - Left front bass speaker Radio Component Locations

R103 - Left front midrange speaker Radio Component Locations

T17d - 17-pin connector, brown Overview Of Connector Stations

T27a - 27-pin connector, black

T32h - 32-pin connector

* - Diameter depends on equipment
