Front Noise Insulation

Front Noise Insulation

Removing

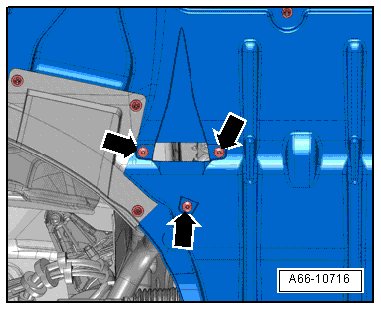

- Remove the bolts - arrows -.

- Remove the bolts - arrows - for the front wheel housing liner connection- 1 - and the front wheel spoiler.

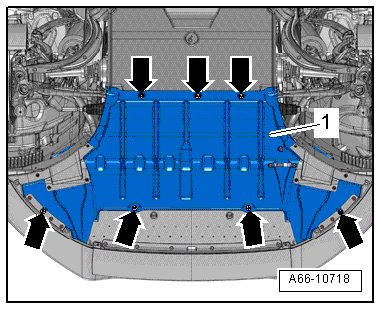

- Remove the quick release - arrows -.






- Remove the front noise insulation - 1 - toward the rear and out of the lower section of the bumper cover.

• The guide tabs for the front noise insulation will disengage while doing this.

- Remove the front noise insulation.

Installing

• Tightening specifications, refer to => [ Front and Rear Noise Insulation Assembly Overview ] Underbody Panels Audi RS4.

Install in reverse order of removal.
