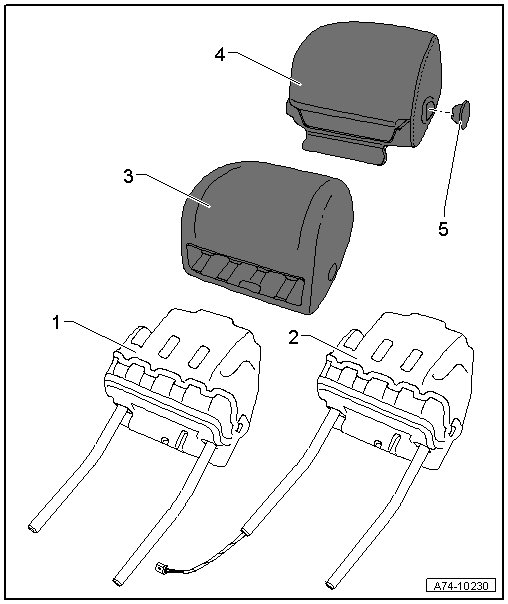

Headrest Cover and Padding Overview

Headrest Cover and Padding Overview






1 Headrest Support

• Manual headrests

2 Headrest Support

• Power headrests

• Available only with cushion - 3 - as a replacement part. For allocation refer to the Electronic Parts Catalog (ETKA).

3 Cushion

• Removing and installing, refer to => [ Headrest Cover and Upholstery, with Locking Mechanism ] Headrest Cover and Upholstery, With Locking Mechanism

• The release button opening is only with the manual headrests

4 Cover

• Removing and installing, refer to => [ Headrest Cover and Upholstery, with Locking Mechanism ] Headrest Cover and Upholstery, With Locking Mechanism

• The release button opening is only with the manual headrests

5 Release Button

• For height adjustment

• Clipped to the headrest support

• Only installed with manual headrests
