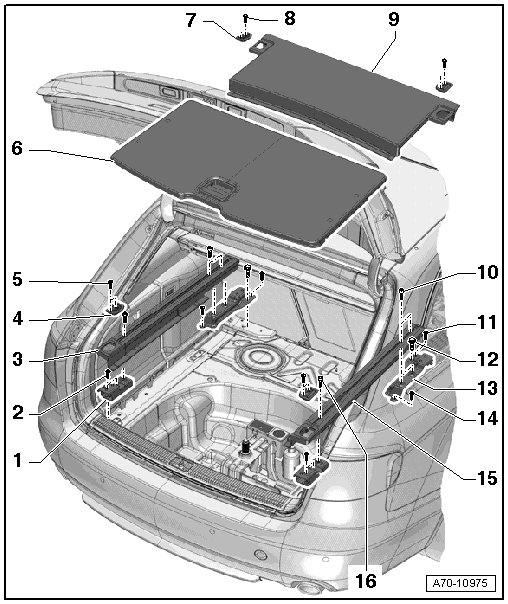

Storage Area Floor With Retaining Track Rails

Storage Area Floor With Retaining Track Rails






1 Rear Bracket

• Removing and installing, refer to => [ Retaining Track Rear Bracket ] Retaining Track Rear Bracket

2 Bolt

• Quantity: 2

• 9 Nm

3 Left Retaining Rack

• Removing and installing, refer to => [ Retaining Track Rails ] Retaining Track Rails

4 Tie-Down Eye

• Removing and installing, refer to => [ Tie Downs ] Tie Downs

5 Bolt

• Quantity: 2

• 6 Nm

6 Rear Luggage Compartment Floor

7 Tie-Down Eye

• Removing and installing, refer to => [ Tie Downs ] Tie Downs

8 Bolt

• Quantity: 2

• 6 Nm

9 Front Luggage Compartment Floor

• For vehicle tool kit molded insert

• Removing and installing, refer to => [ Front Storage Area Floor ] Front Storage Area Floor

10 Bolt

• Quantity: 2

• 7 Nm

11 Bolt

• 9 Nm

12 Bolt

• 55 Nm

13 Front Bracket

• Removing and installing, refer to => [ Retaining Track Front Bracket ] Retaining Track Front Bracket

14 Counter-Supports

• For the luggage compartment floor panel handle

• Removing and installing, refer to => [ Rear Storage Area Floor Handle ] Rear Storage Area Floor Handle

15 Right Retaining Track

• Removing and installing, refer to => [ Retaining Track Rails ] Retaining Track Rails

16 Bolt

• 7 Nm
