Front Armrest







Front Armrest

Removing and installing is identical for the left and right sides.

Removing






- Remove the door trim panel. Refer to => [ Front Door Trim ] Front Door Trim.

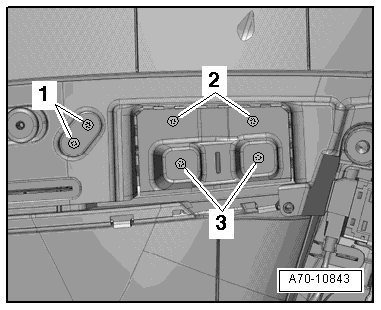

- Remove the bolts - 1 through 3 - on the rear of the door trim.

- Remove the armrest - 1 - from the door panel.






Installing

Install in reverse order of removal.

Tightening specifications, refer to => [ Front Door Trim Overview ] Front Door Trim Overview.
