Wagon

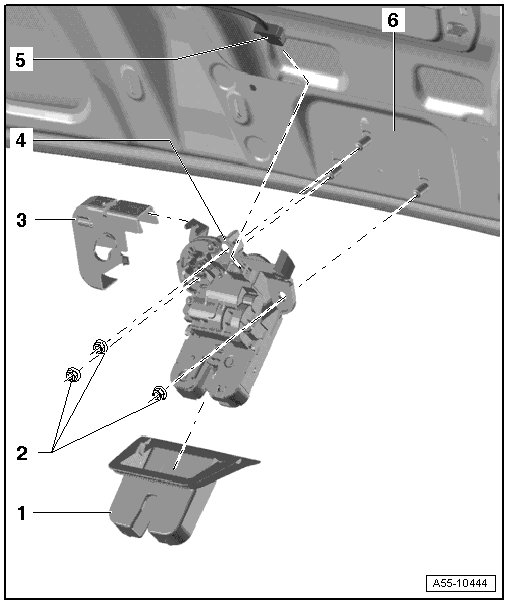

Rear Lid Lock






1 Rear Lid Lock Cover

• When assembling, cover must engage audibly into lid lock.

• Mount the cover on the rear lid lock.

2 Nuts

• 21 Nm

3 Cover

• Mount the cover on the lock until it audibly clicks into place.

4 Rear Lid Lock

- Remove the cover for the rear lid lock.

• Remove the rear lid trim panel.

- Pull off cover - 3 -.

- Disconnect the connector for the rear lid lock.

- Remove the nuts - 2 - and then remove the rear lid lock.

5 Electrical Connection

6 Rear Lid
