Tail Lamp Cover

Tail Lamp Cover

• Removing and installing is identical for the left and right sides.

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing

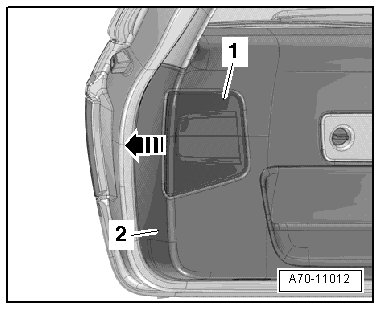

- Unclip and remove the tail lamp cover - 1 - using the (3409) from the lower rear lid trim panel - 2 - in the direction of the - arrow -.

Installing

Install in reverse order of removal.
