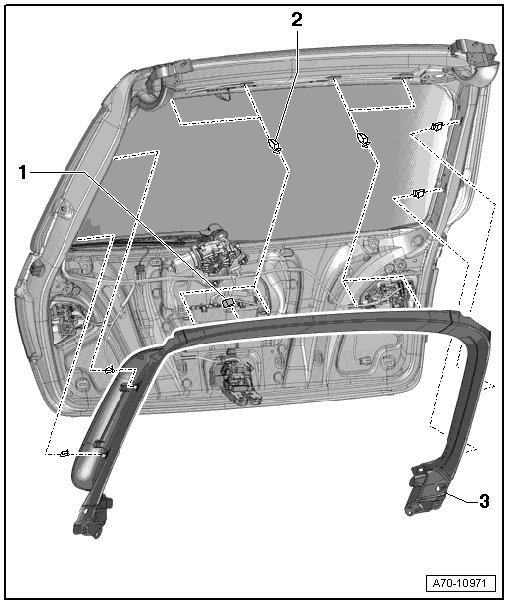

Rear Lid Trim Panel, Upper Overview

Rear Lid Trim Panel, Upper Overview






1 Rubber Buffer

• Quantity: 11

• Install in the trim

2 Clips

• Quantity: 8

• Install in the trim

• Replace if damaged or deformed

3 Upper Rear Lid Trim Panel

• Removing and installing, refer to => [ Rear Lid Trim Upper Panel ] Rear Lid Trim Upper Panel
