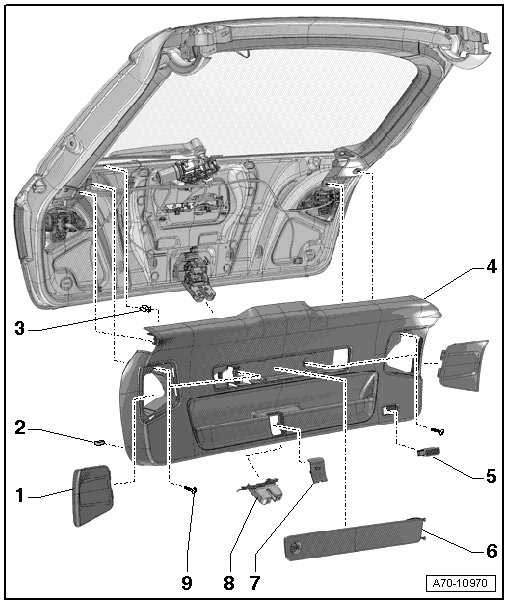

Rear Lid Trim Panel, Lower Overview

Rear Lid Trim Panel, Lower Overview






1 Cover

• For tail lamps

• Removing and installing, refer to => [ Tail Lamp Cover ] Tail Lamp Cover

2 Rubber Buffer

• Quantity: 6

• Install in the trim

3 Clips

• Quantity: 12

• Install in the trim

• Replace if damaged or deformed

4 Lower Rear Lid Trim

• Removing and installing, refer to => [ Rear Lid Lower Trim Panel ] Rear Lid Lower Trim Panel

5 Luggage Compartment Light

6 Cover

• For the warning triangle

• Removing and installing, refer to => [ Warning Triangle Cover ] Warning Triangle Cover

7 Cover

• For the emergency release

8 Trim

• For rear lid lock

• Removing and installing, refer to => [ Rear Lid Latch Trim Panel ] Rear Lid Latch Trim Panel

9 Bolt

• Quantity: 4

• 2 Nm
