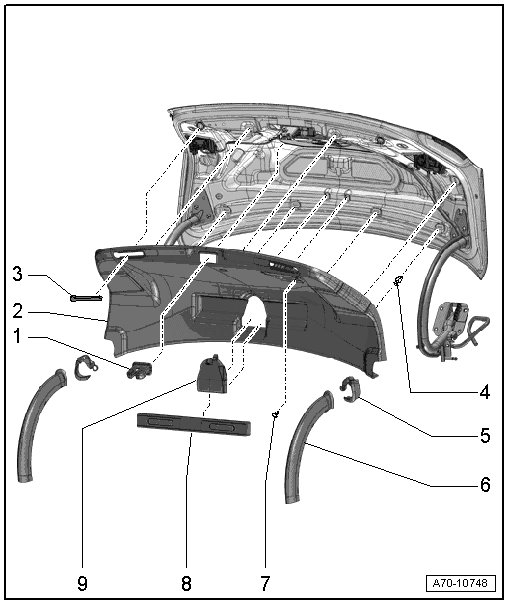

Rear Lid Trim

Rear Lid Trim






1 Trim

• For rear lid lock

• Removing and installing, refer to => [ Rear Lid Latch Trim Panel ] Rear Lid Latch Trim Panel

2 Rear Lid Trim

• Removing and installing, refer to => [ Rear Lid Trim ] Rear Lid Trim

3 Stop Strip

• Clipped into the rear lid

4 Clips

• Quantity: 11

• Install in the trim

• Replace if damaged or deformed

5 Intermediate Piece

6 Wiring Guide

7 Bolt

• 1.8 Nm

8 Warning Triangle

9 Bracket

• For the warning triangle

• Removing and installing, refer to => [ Warning Triangle Bracket ] Warning Triangle Bracket
