Retaining Hooks







Retaining Hooks

Removing

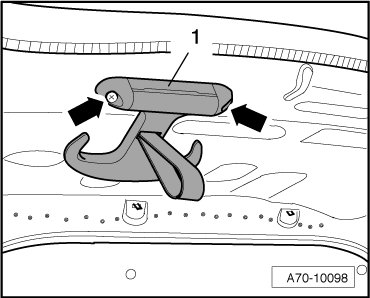

- Remove screws - arrows - and remove retaining hook - 1 -.

Installing

Install in reverse order of removal.

Tightening specifications, refer to => [ Tightening specification, retaining hooks to body ] Luggage Compartment Side Trim.
