Rear Lid Trim

Rear Lid Trim

Special tools, testers and auxiliary items required

• Pry Lever (80 - 200)

Removing






- Remove the warning triangle bracket. Refer to => [ Warning Triangle Bracket ] Warning Triangle Bracket.

- Remove the rear lid lock trim. Refer to => [ Rear Lid Latch Trim Panel ] Rear Lid Latch Trim Panel.

- Unclip the stop rails using a screwdriver.

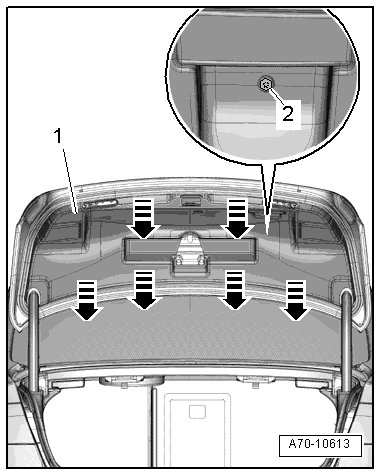

- Remove the screw - 2 -.

- Pry rear lid trim - 1 - out using a (80 - 200) - arrows -.

- Disengage the rear lid trim at the hinges and remove it.

Installing

Install in reverse order of removal. Note the following:

• If the trim clamps remain in the rear lid mounting points, remove them and insert them in the trim.

• Check clamps for damage or deformation, replace if necessary.

- Position the rear lid trim and push on it until it engages audibly.

Tightening specifications, refer to => [ Rear Lid Trim ] Rear Lid Trim.
