Wagon

Rear Cross Panel Trim

Special tools, testers and auxiliary items required

• Pry Lever (80 - 200)

Removing






- Remove the rear luggage compartment floor.

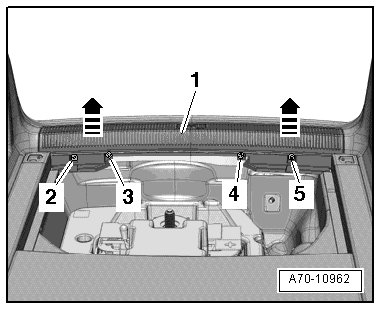

- Remove the bolts - 2 through 5 -.

- Unclip rear cross panel trim - 1 - upward vertically using a (80 - 200) - arrows -.

Installing

Install in reverse order of removal. Note the following:

• If the trim clamps remain in the body mounting points, remove them and insert them in the trim.

• Check clamps for damage or deformation, replace if necessary.

- Push on the rear cross panel trim until it engages audibly and stretch the lip of the rear lid seal over the rear cross panel trim.

Tightening specifications, refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim.
