Partition Screen Separator on Rear Seat Backrest

Partition Screen Separator on Rear Seat Backrest

Removing






- Fold both rear seat backrests forward.

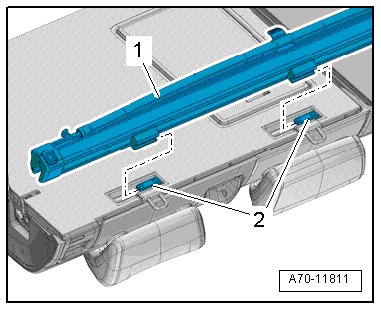

- Remove the screen separator - 1 - to the right from out of the mounts - 2 - on the right 2/3 of the rear seat backrest.

Installing

Install in reverse order of removal. Note the following:

- Position the screen separator - 1 - and the mounts in the guides on the right 2/3 of the rear seat backrest.

- Press the screen separator toward the left in the mounts - 2 - on the right 2/3 of the rear seat backrest all the way in.
