Partition Screen Separator Wall Mount

Partition Screen Separator Wall Mount

• Removing and installing is identical for the left and right sides.

Removing

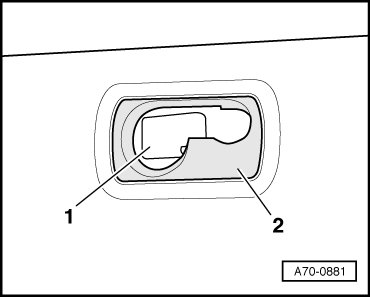

- Press the cover - 1 - toward the rear and remove the screws on the partition net mount - 2 -.

Installing

Install in reverse order of removal.

Tightening specifications, refer to => [ Partition Screen Separator ] Partition Screen Separator.
