Luggage Compartment Floor Mat Bracket

Luggage Compartment Floor Mat Bracket

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing






- Remove the luggage compartment liner. Refer to => [ Luggage Compartment Liner ] Luggage Compartment Liner.

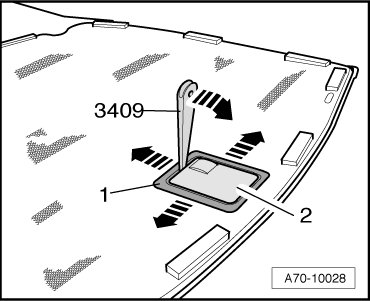

- Release the mounting bracket - 1 - using the (3409) - arrows -.

- Disengage mounting bracket and remove luggage compartment floor covering retainer - 2 -.

Installing

Install in reverse order of removal. Note the following:

- Mounting bracket can be pressed down in one position on luggage compartment floor covering retainer.
