Gap Cover Front Bracket

Gap Cover Front Bracket

• Removing and installing is identical for the left and right sides.

Removing






- Remove the front luggage compartment floor panel (vehicle tool box). Refer to => [ Front Storage Area Floor ] Front Storage Area Floor.

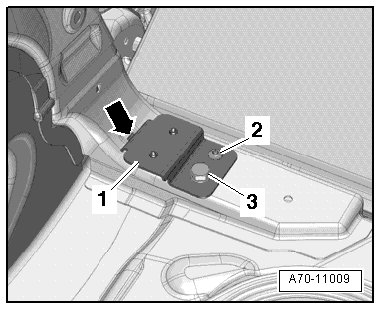

- Remove the bolts - 2 - and - 3 -.

- Disengage the front bracket - 1 - on the body - arrow - and remove it.

Installing

Install in reverse order of removal.

Tightening specifications, refer to => [ Storage Area Floor With Gap Cover ] Storage Area Floor With Gap Cover.
