Gap Cover

Gap Cover

• Removing and installing is identical for the left and right sides.

Removing






- Remove the rear cross panel trim. Refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim.

- Remove the rear tie-down. Refer to => [ Tie Downs ] Tie Downs.

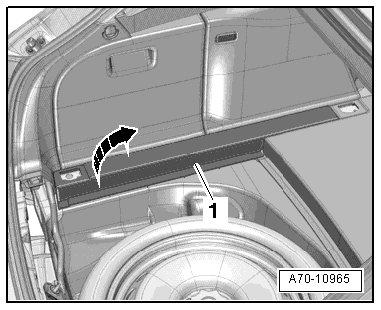

- Remove the gap cover - 1 - - arrow -.

Installing

Install in reverse order of removal.
