Front Door Limiter: Service and Repair

Door Arrester






1 Door arrester

2 Rubber grommet

3 Bolt

• 8 Nm

4 Cover

5 Grommet

6 Bolt

• 25 Nm

Removing






- Move the door window into the "closed" position.

- Remove the door trim panel.

- Remove the lower speaker.

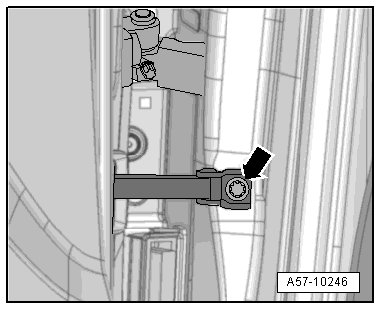

- Remove the door arrester bolt - arrow -.

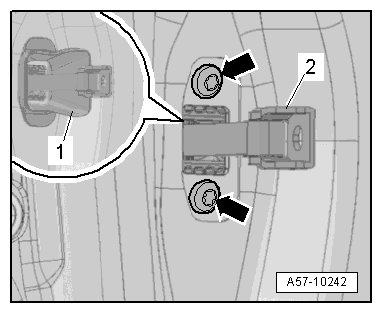

- Remove the door arrester seal - 1 - on the door opening.






- Remove the bolt - arrows - and remove the door arrester - 2 - inward.

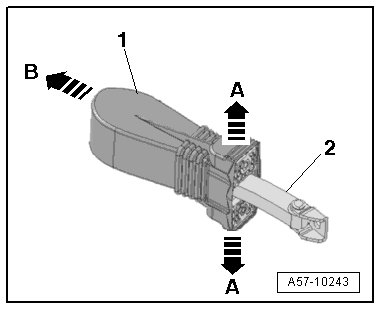

- Pull the rubber grommet - 1 - on the door arrester to the side slightly - A arrows -.






- Remove the rubber grommet from the door arrester - 2 - - arrow B -.

Installing

• Tightening specifications, refer to => [ Door Arrester ].

Install in reverse order of removal. Note the following:

- Install the lower speaker.

- Install the door trim panel.
