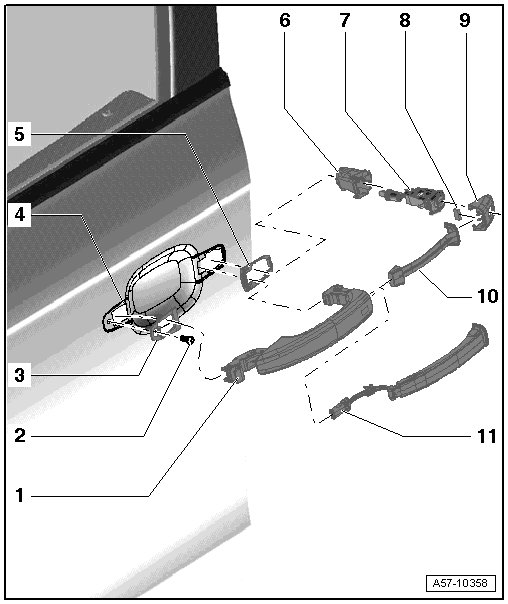

Outer Door Handle Assembly Overview

Outer Door Handle Assembly Overview






1 Outside door handle

• Removing and Installing, refer to => [ Outer Door Handle ] Outer Door Handle

2 Bolt

• 2.5 Nm

3 Front backing

• Removing and Installing, refer to => [ Outer Door Handle ] Outer Door Handle

4 Door

5 Rear backing

• Removing and Installing, refer to => [ Outer Door Handle ] Outer Door Handle

6 Housing

• Instead of the lock cylinder

• For the passenger door

• Removing and installing is performed in the same way as with the lock cylinder.

7 Lock cylinder

• For the driver door

• Removing and Installing, refer to => [ Lock Cylinder Assembly Overview ] Lock Cylinder Assembly Overview

8 Magnet

• For vehicles with the "keyless entry system"

9 Cover

• Locked on the lock cylinder.

• Removing => [ Removing the lock cylinder
cap ] Lock Cylinder

10 Outer door handle trim

• For vehicles without the "keyless entry system"

• Removing and Installing, refer to => [ Outer Door Handle Trim ] Outer Door Handle Trim

11 Door handle sensor

• For vehicles with the "keyless entry system"

• Removing and Installing, refer to => [ Left and Right Front Outside Door Handle Touch Sensor ] Left and Right Front Outside Door Handle Touch Sensor.
