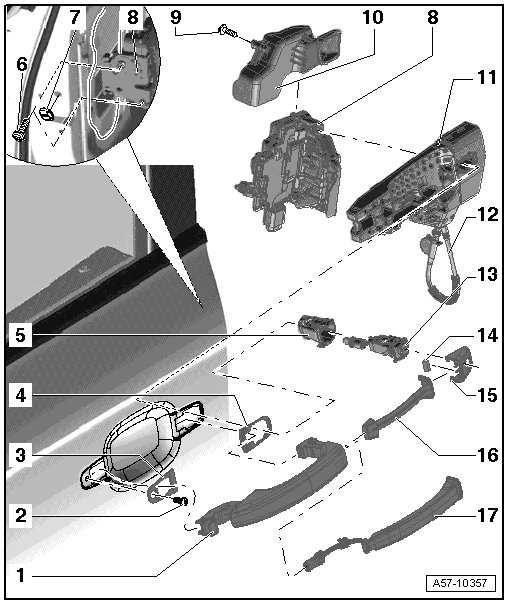

Door Handle and Lock Assembly Overview

Door Handle and Lock Assembly Overview






1 Outside door handle

• Removing and Installing, refer to => [ Outer Door Handle ] Outer Door Handle

2 Bolt

• 2.5 Nm

3 Front backing

• Removing and Installing, refer to => [ Outer Door Handle ] Outer Door Handle

4 Rear backing

• Removing and Installing, refer to => [ Outer Door Handle ] Outer Door Handle

5 Housing

• instead of the lock cylinder

• for the passenger door

• Removing and installing the same as for the lock cylinder.

6 Bolt

• Tightening specifications, item 3=> [ (Item 3) Bolt ] Door Lock and Striker Pin Assembly Overview

7 Cover

• Unclip prior to removing the door handle.

8 Door lock

9 Bolt

• 3.5 Nm

10 Cover

• with the cover for the door lock

• Removing and Installing, refer to => [ Door Lock Cover ] Door Lock Cover

11 Bracket

• Removing and Installing, refer to => [ Bracket ] Bracket

12 Actuating link

• for the door lock

• Removing and Installing, refer to => [ Door Lock Actuating Link ] Door Lock Actuating Link

13 Lock cylinder

• for the driver door only

• Removing and Installing, refer to => [ Lock Cylinder Assembly Overview ] Lock Cylinder Assembly Overview

14 Magnet

• for vehicles with the "keyless entry system"

15 Cover

• Driver side: For lock cylinder

• Passenger side: Closed version

• Removing and Installing, refer to => [ Removing the lock cylinder
cap ] Lock Cylinder

16 Outer door handle trim

• for vehicles without the "keyless entry system"

• Removing and Installing, refer to => [ Outer Door Handle Trim ] Outer Door Handle Trim

17 Door handle sensor

• For vehicles with the "keyless entry system"
