Wagon

Subwoofer in Rear Shelf (R157)

The subwoofer on rear shelf is located in the spare wheel well.

- Turn off all electrical consumers.

- Remove the key.

Removing

- Remove the luggage compartment floor

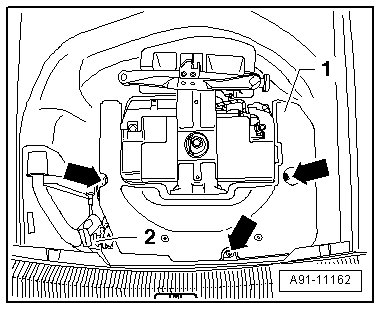

- Remove the nuts - arrows - on the subwoofer on rear shelf - 1 -.






- Unlock and disconnect the connector - 2 - from the subwoofer on rear shelf - 1 -.

- Remove the subwoofer on rear shelf - 1 - upward.

Installing

- Install in reverse order of removal.

Tightening specifications, refer to => [ Sound System Component Location Overview, through 10.31.2008 ] Sound System Component Location Overview, Through 10.31.2008 or => [ Sound System Component Location Overview, from 11.03.2008 ] Sound System Component Location Overview, From 11.03.2008.
