Sound System Overviews
Sound System Overviews

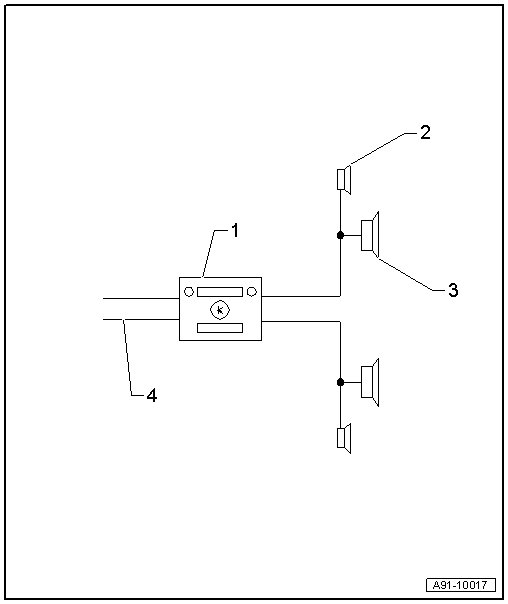

Radio (CAN) Sound System Basic
1 Radio (R) Inside the Instrument Panel
2 Left Front Treble Speaker (R20) / Right Front Treble Speaker (R22) in the instrument panel
3 Left Front Mid-Bass Speaker (R101) / Right Front Mid-Bass Speaker (R102) at bottom in front doors
4 CAN Bus (Infotainment)
Radio CAN/MMI, Sound System Basic Plus, from 11.03.2008
1 Radio (R) Inside the Instrument Panel
2 Left Front Treble Speaker (R20) / Right Front Treble Speaker (R22) in the instrument panel
3 Left Front Mid-Bass Speaker (R101) / Right Front Mid-Bass Speaker (R102) at bottom in front doors
4 Left Rear Treble Speaker (R14) / Right Rear Treble Speaker (R16) at top in rear doors
5 Left Rear Mid/Low Range Speaker (R159) / Right Rear Mid/Low Range Speaker (R160) at bottom in rear doors
6 CAN Bus (Infotainment)

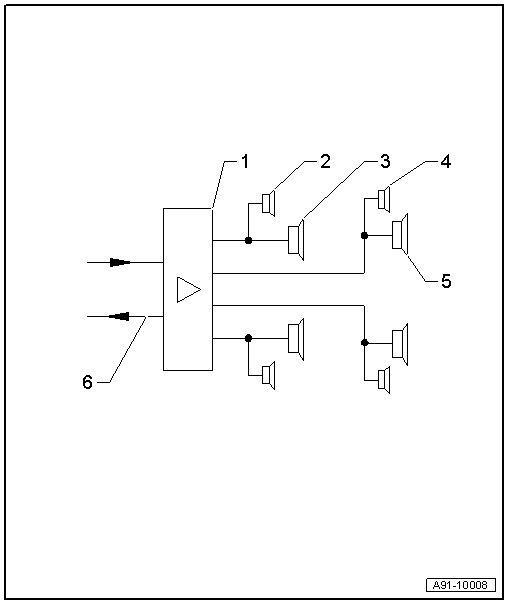

MMI Sound System Basic Plus, through 10.31.2008
1 Digital Sound System Control Module (J525) behind the luggage compartment left side trim
2 Left Front Treble Speaker (R20) / Right Front Treble Speaker (R22) in the instrument panel
3 Left Front Mid-Bass Speaker (R101) / Right Front Mid-Bass Speaker (R102) at bottom in front doors
4 Left Rear Treble Speaker (R14) / Right Rear Treble Speaker (R16) at top in rear doors
5 Left Rear Mid/Low Range Speaker (R159) / Right Rear Mid/Low Range Speaker (R160) at bottom in rear doors
6 MOST Bus

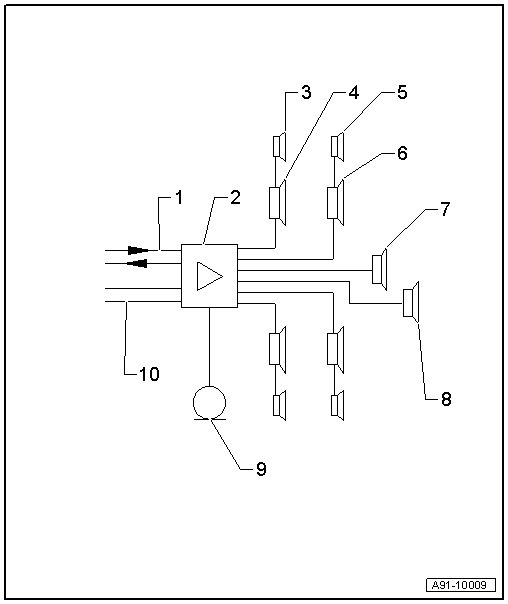

Radio CAN/MMI, sound system standard, through 10.31.2008
1 MOST bus
2 Digital Sound System Control Module (J525) behind the luggage compartment left side trim
3 Left Front Treble Speaker (R20) / Right Front Treble Speaker (R22) in the instrument panel
4 Left Front Mid-Bass Speaker (R101) / Right Front Mid-Bass Speaker (R102) at bottom in front doors
5 Left Rear Treble Speaker (R14) / Right Rear Treble Speaker (R16) at top in rear doors
6 Left Rear Mid/Low Range Speaker (R159) / Right Rear Mid/Low Range Speaker (R160) at bottom in rear doors
7 Center Mid/High Range Speaker (R158) in center instrument panel
8 Subwoofer On Rear Shelf (R157) (sedan)
- Subwoofer On Rear Shelf (R157) in the spare wheel well (Avant)
9 Microphone unit in front roof module (R164) ( Voice Control Microphone (R206) ) in the Front Interior Lamp (W1) (MOST only)
10 CAN Bus (Infotainment)
MMI sound system standard, from 11.03.2008
1 Radio (R) behind the left luggage compartment left side trim
2 Left Front Treble Speaker (R20) / Right Front Treble Speaker (R22) in the instrument panel
3 Left Front Mid-Bass Speaker (R101) / Right Front Mid-Bass Speaker (R102) at bottom in front doors
4 Left Rear Treble Speaker (R14) / Right Rear Treble Speaker (R16) at top in rear doors
5 Left Rear Mid/Low Range Speaker (R159) / Right Rear Mid/Low Range Speaker (R160) at bottom in rear doors
6 Center Mid/High Range Speaker (R158) in center instrument panel
7 Subwoofer On Rear Shelf (R157) (Sedan)
- Subwoofer On Rear Shelf (R157) in the spare wheel well (Avant)
8 MOST bus

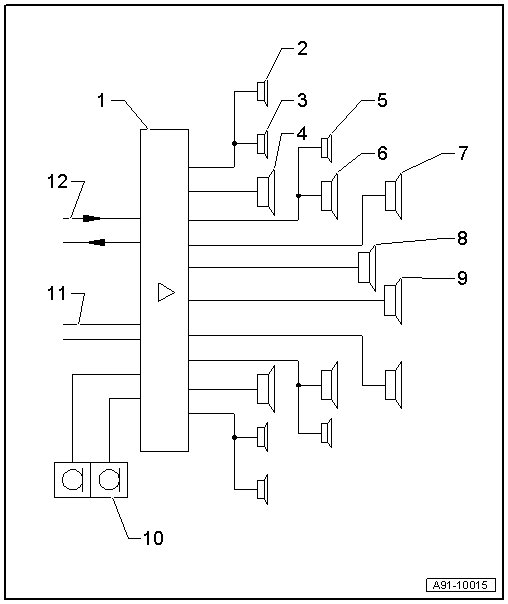

Radio CAN/MMI Sound System Premium Bang & Olufsen
1 Digital Sound System Control Module (J525) behind the luggage compartment left side trim
2 Left Front Treble Speaker (R20) / Right Front Treble Speaker (R22) in mirror triangle
3 Left Front Midrange Speaker (R103) / Right Front Midrange Speaker (R104) in the instrument panel
4 Left Front Bass Speaker (R21) / Right Front Bass Speaker (R23) at bottom in front doors
5 Left Rear Treble Speaker (R14) / Right Rear Treble Speaker (R16) at top in rear doors
6 Left Rear Mid/Low Range Speaker (R159) / Right Rear Mid/Low Range Speaker (R160) at bottom in rear doors
7 Left Rear Midrange Speaker (R105) / Right Rear Midrange Speaker (R106) in the rear shelf (sedan)
- Left Rear Midrange Speaker (R105) / Right Rear Midrange Speaker (R106) in the D-pillars (Avant)
8 Center Mid/High Range Speaker (R158) in center instrument panel
9 Subwoofer On Rear Shelf (R157) (Sedan)
- Subwoofer On Rear Shelf (R157) in the spare wheel well (Avant)
10 Microphone Unit In Front Roof Module (R164) ( Inside Microphone (R74) all/ Voice Control Microphone (R206) MMI through 10.31.2009, in the Front Interior Lamp (W1)
11 CAN Bus (Infotainment)
12 MOST Bus
