Wagon

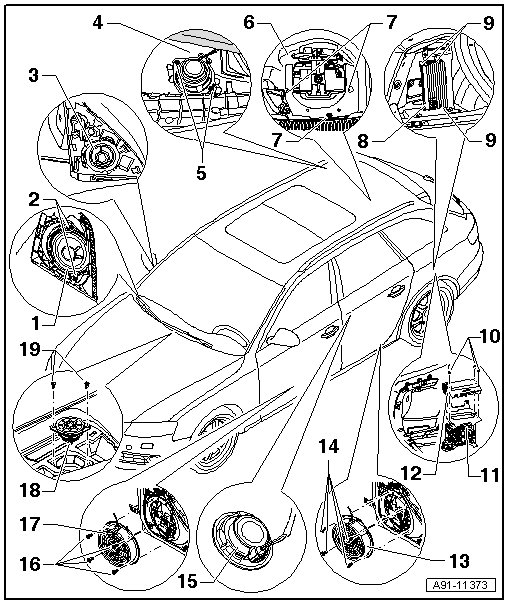

Sound System Component Location Overview, from 11.03.2008






1 Left Front Treble Speaker (R20) / Left Front Midrange Speaker (R103) / Right Front Treble Speaker (R22) / Right Front Midrange Speaker (R104)

• Removing and installing, refer to => [ Front Midrange and Treble Speakers ] Front Midrange and Treble Speakers

2 Bolt

• 1 Nm

3 Left Front Treble Speaker (R20) / Right Front Treble Speaker (R22) (B+O)

• Removing and installing, refer to => [ Front Treble Speaker, Band & Olufsen ] Front Treble Speaker, Band & Olufsen

4 Left Rear Midrange Speaker (R105) / Right Rear Midrange Speaker (R106)

• Removing and installing, refer to => [ Rear Midrange Speaker ] Rear Midrange Speaker.

5 Bolt

• 2 Nm

6 Subwoofer In Rear Shelf (R157)

• Removing and installing, refer to => [ Subwoofer in Rear Shelf (R157) ] Subwoofer In Rear Shelf (R157).

7 Nut

• 4.5 Nm

8 Digital sound system control module (J525) (CAN)

• For standard CAN connectors, refer to => [ Sound System Standard, CAN ] Sound System Standard, CAN.

• Connector B+O (CAN). Refer to => [ Sound System Bang & Olufsen, CAN ] Sound System Bang & Olufsen, CAN.

• CAN, removing and installing, refer to => [ Digital Sound System Control Module (J525), CAN ] Digital Sound System Control Module (J525), CAN.

9 Bolt

• 3.5 Nm

10 Bolt

• 3.5 Nm

11 Bracket

12 Digital Sound System Control Module (J525) MMI

• Connectors B+O (MMI).

• MMI from 11.03.2008, removing and installing, refer to => [ Digital Sound System Control Module (J525), MMI from 11.03.2008 ] Digital Sound System Control Module (J525), MMI From 11.03.2008.

13 Left Rear Mid-Bass Speaker (R159) / Right Rear Mid-Bass Speaker (R160)

• Removing and installing, refer to => [ Rear Mid-Bass Speaker ] Rear Mid-Bass Speaker.

14 Bolt

• 3 Nm

15 Left Rear Treble Speaker (R14) / Right Rear Treble Speaker (R16)

• Removing and installing, refer to => [ Rear Treble Speaker ] Rear Treble Speaker.

16 Bolt

• 3 Nm

17 Left Front Mid-Bass Speaker (R101) / Right Effects Speaker (R21) / Right Front Mid-Bass Speaker (R102) / Right Front Bass Speaker (R23)

• Removing and installing, refer to => [ Front Mid/Low Range and Front Bass Speakers ] Front Mid/Low Range and Front Bass Speakers.

18 Center Mid/High Range Loudspeaker (R158)

• Removing and installing, refer to => [ Center Mid/High Range Loudspeaker (R158) ] Center Mid/High Range Loudspeaker (R158).

19 Bolt

• 1 Nm
