MMI Basic/Basic Plus Navigation System Overview

MMI Basic/Basic Plus Navigation System Overview

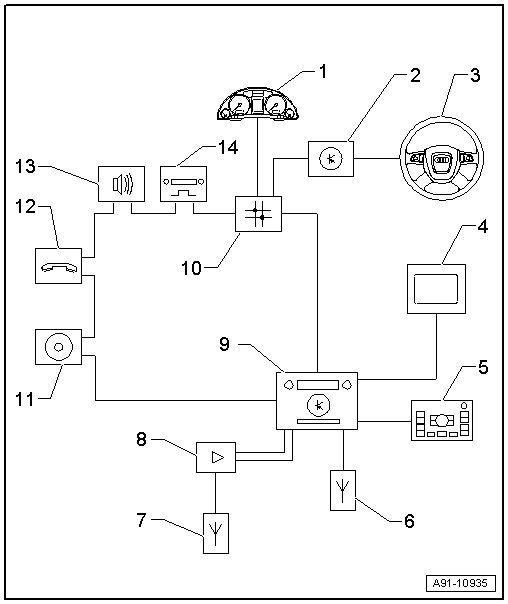

1 Instrument Cluster Control Module (J285) In The Instrument Panel

2 Steering Column Electronics Control Module (J527) On Steering Column At Steering Column Switch

3 Multifunction Steering Wheel

4 Front Information Display Control Head (J685) In Center Of The Instrument Panel

5 Multimedia Control Head (E380) in the Center Console

6 Radio, Telephone, Navigation System Antenna (R52) Roof Antenna

7 Window Antenna

8 Antenna Amplifier 3 (R112) Behind the Left D-Pillar Trim/Luggage Compartment Side Trim Panel

9 Front Information Display Control Head Control Module (J523) Inside Glove Compartment

• MMI basic contains the Radio (R) / CD player (R89)

• MMI basic plus Navigation contains the Radio/CD-Player/ Navigation System with CD Drive Control Module (J401)

10 Data Bus On Board Diagnostic Interface (J533) Behind the Glove Compartment On the Left Side

11 CD Changer (R41) Inside the Instrument Panel

- External audio source connection (R199) (AUX IN) inside the center console storage compartment

12 Telephone Transceiver (R36) under the front passenger seat

13 Digital Sound System Control Module (J525) behind the luggage compartment left side trim

14 Digital Radio (R147) behind the left luggage compartment left side trim
