Lane Change Assistance Control Module

Lane Change Assistance Control Module

Removing






- Remove the rear bumper cover.

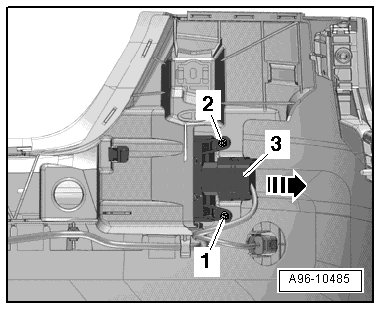

- Disconnect the electrical connector - 3 -.

- Remove the bolts - 1 and 2 -.

- Remove the lane change assistance control module from the mount on the bumper - arrow -.

Installing

Install in reverse order of removal, observing the following:

- Install the cover on the rear bumper.

If the bumper cover was removed, the lane change assistance control module must be calibrated again. Refer to => [ Lane Change Assistance, Preparing for Calibration ] Lane Change Assistance, Preparing For Calibration.
