Home >> Audi >> 2012 >> A3 Quattro (8PA) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Specifications >> Mechanical Specifications >> Code Letters, Assembly Allocation, Ratios and Capacities >> Rear Final Drive 02D

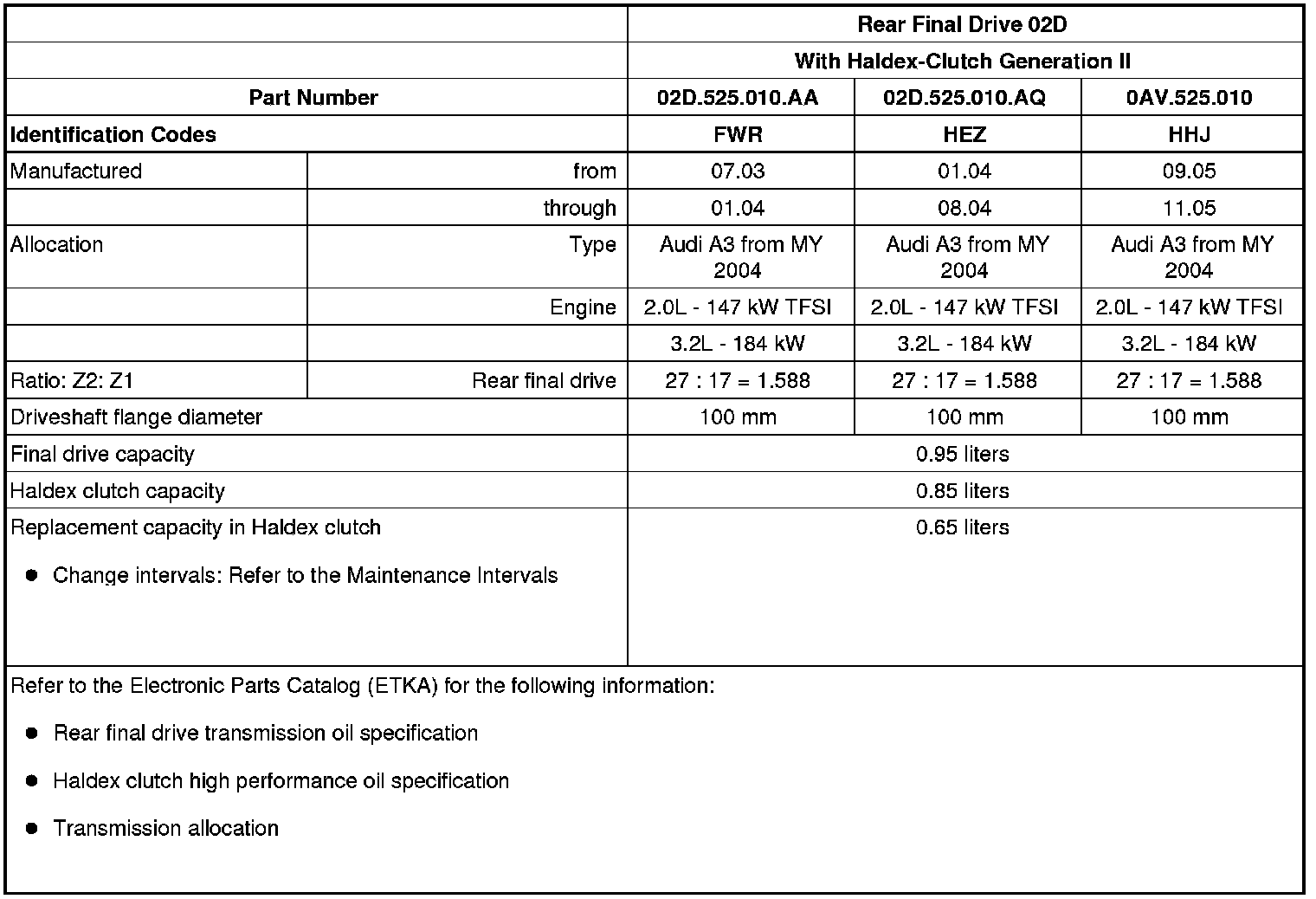

Rear Final Drive 02D







Rear Final Drive 02D
