Spray Nozzles, Adjusting, From 06.2008

Spray Nozzles, Adjusting, from 06.2008

Special tools, testers and auxiliary items required

• Windshield Washer Aiming Tool (T40187) equipped with Replacement Tip (3125/5A)

Adjusting






• The settings indicate the values for a moving vehicle, i.e. the spray from the jets is slightly offset when the vehicle is stationary.

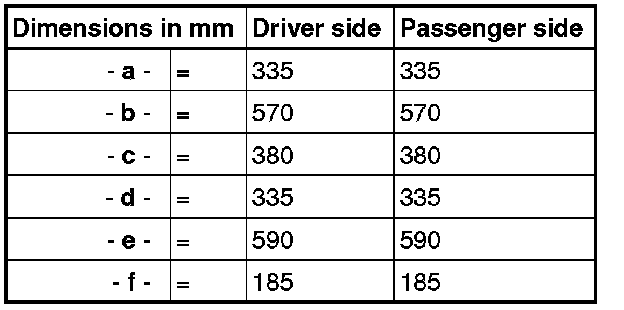

- Mark the six points on windshield using a water soluble marker














Risk of injury.

• If the windshield washer aiming tool (T40187) is not used, ensure that both sides are always covered and secured by covers - 3 - and - 4 -.

• If one side is not secured by the cover, injury can be caused by the needle (3125/5A) - 1 - or adjusting pin - 2 -.

• When opening each side, always ensure that the other side is not pointing toward the hand.

- Unlock long cover - 1 - on the (T40187) - arrow A - and push it back - arrow B -.






- Place adjusting pin - 2 - on the respective nozzle - arrow - of nozzle unit - 1 - and aim at the points on the windshield and adjust if necessary.






- If the spray field does not correspond to the specifications, clean dirty spray jet.


Risk of injury.

• The adjusting pin must be covered and secured by the cover after each use.

Cleaning the nozzle

- Remove nozzle. Refer to => [ Spray Nozzles, ] Spray Nozzles,.

- Flush nozzle opposite to spray direction using clear water.

- To remove remaining impurities, the nozzle must only be blown out opposite to spray direction using compressed air.

- If the spray field still does not correspond to the specifications, replace the spray jet.
