Front Door Window Guide

Window Guide

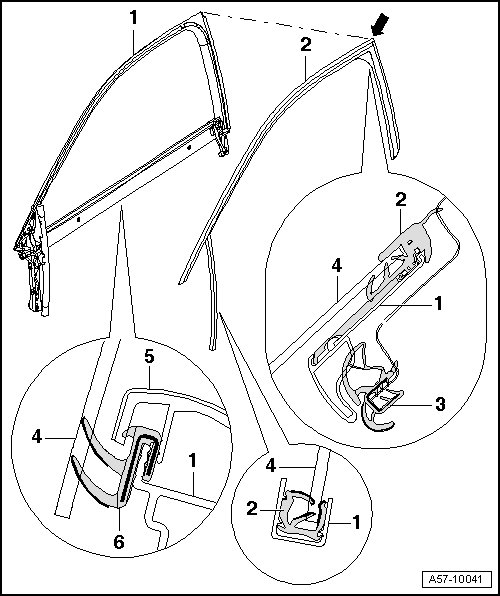

1 Window Frame

• Removed => [ Window Frame ] Window Frame and Window Regulator

2 Window Guide

• Seal must not be installed by knocking it on, rather seal must be pressed in.

• Use soapy water to assist assembly of seal.

• Slide on at sides onto window frame or press into guide on A-pillar.

• Use soap solution to assist assembly.

• Securing piece must engage audibly at corner - arrow -, adhere further if necessary

3 Inner Door Seal

4 Door Window

5 Door Trim

• Removed

6 Inner Window Recess Seal
