Rear Door Trim

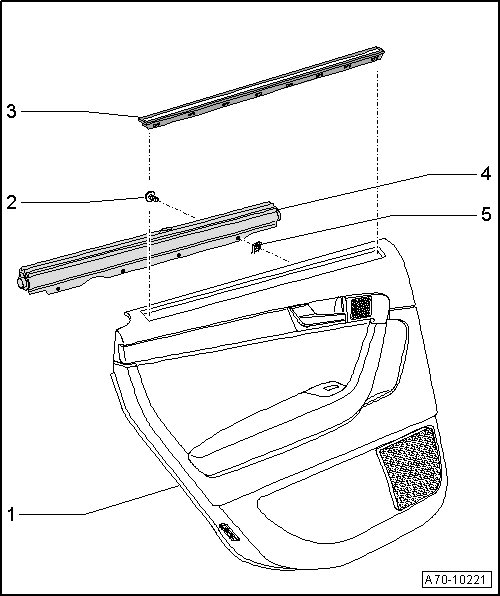

Sun Shade Component Overview






1 Rear Door Trim

2 Bolt

2.5 Nm

3 Guide Strip

• Removing and Installing, refer to => [ Sun Shade ] Sun Shade

4 Sun Shade

• Removing and Installing, refer to => [ Sun Shade ] Sun Shade

5 Spring Nut
