Rear Door Window Glass Weatherstrip: Service and Repair

Outer Window Shaft Strip

- Door trim removed.

- Remove the window regulator and the window frame. Refer to => [ Window Frame and Window Regulator ] Rear Door Components.

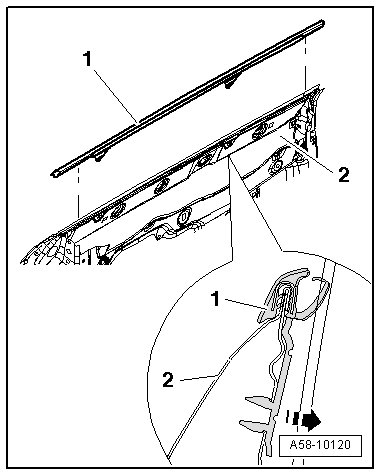

- Unclip the strips from the door - 2 - in direction of - arrow - and remove the window shaft strip - 1 - from the door flange.

- Press on the C-pillar window shaft strip flush on the door flange starting from the rear edge of the door working forward.

- Press the strip for the window shaft strip into the door.
