Window Glass, Preparing For Installation

Window Glass, Preparing for Installation

If windshield flange was damaged during removal, paint structure should be repaired and if necessary, corrosion repair measures should be taken.

- Clean adhesion area around edge of window with glass cleaner, replacement part no. D 009 401 04.

- Prime window in adhesion area along perimeter using D 009 200 02.


Ceramic application on window is not primer! It must be primed before the application of adhesive sealing material!

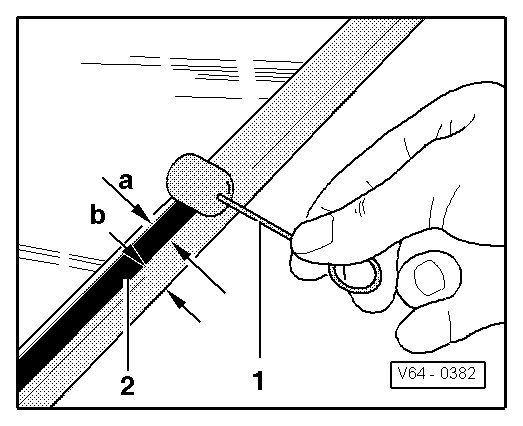

- Apply primer - 2 - D 009 200 02 uniformly all around on window using applicator - 1 -, Part No. D 009 500 25 (felt ball with wire).






- Note varying spacing dimensions to window edge.

- Drying time is approximately 10 minutes.

- Primer width = 22 mm.

• Touch up primer surface after primer has dried.

Adhesive Bead Cross Section





- Adhesive bead - 1 -.

- Primer - 2 -.

- Window - 3 -.

- Dimension - a - = 8 mm.

- Dimension - b - = 12 mm.

- Dimension - c - = note varying spacing dimensions to window edge.
