Shift Mechanism Through MY 2008 Overview

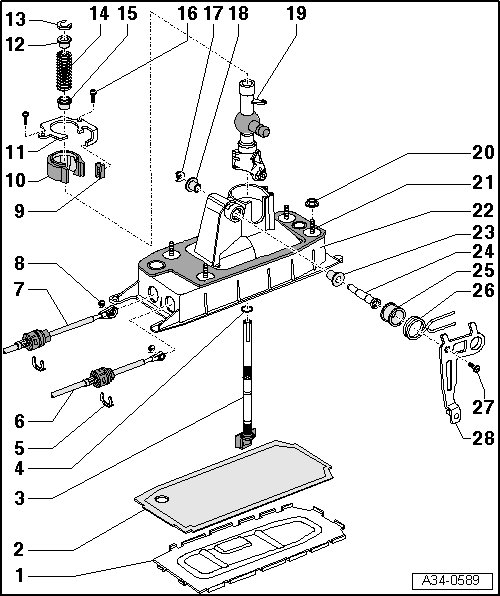

Shift Mechanism through MY 2008 Overview

• Grease bearing areas and slide surfaces with grease (G 000 450 02).






1 Base Plate

• Bend open tabs to remove

• Replace

2 Gasket

• Replace if damaged

3 Selector Lever

4 O-ring

• Replace if damaged

5 Retaining Clip

6 Selector Cable

• Removing and installing, refer to => [ Shift Cable and Selector Cable ] Service and Repair

• Adjusting, refer to => [ Shift Mechanism, Adjusting ] Adjustments

7 Shift cable

• Removing and installing, refer to => [ Shift Cable and Selector Cable ] Service and Repair

• Adjusting, refer to => [ Shift Mechanism, Adjusting ] Adjustments

8 Retaining Washer

9 Guide

• For spring - item 26 - => [ (Item 26) Spring ]

10 Bearing Shell with Damper

11 Cover Plate

12 Bushing

13 Retaining Washer

14 Spring

15 Bushing

16 Bolt, 6 Nm

17 Retaining Washer

18 Bushing

19 Shift Lever Guide

20 Nut

• 10 Nm

21 Gasket

• Between shift housing and floor

• Self-adhesive

22 Shift Housing

23 Bushing

24 Pivot Pin

25 Guide Bushing

• Press onto selector housing

26 Spring

27 Bolt

• 5 Nm

28 Selector Bracket

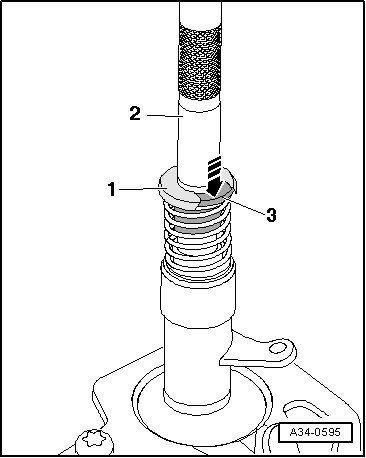

Removing and Installing Lock Washer





- Hold shift lever - 2 - in position.

- Press spacer bushing - 3 - in direction of - arrow -.

- Remove the circlip - 1 -.

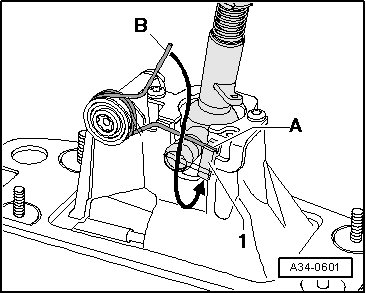

Installing Spring





- Insert the leg - A - of the spring into the guide - 1 - from above.

- Pull the leg - B - of the spring downward and lay it into the guide from below.

• To improve clarity, the selector bracket is removed.
