Shifter M/T: Adjustments

Shift Mechanism, Adjusting

Special tools, testers and auxiliary items required

• Connecting Pin (T10027A)

Adjustment requirements

• Operating and transfer elements of shift mechanism must be in proper condition.

• Shift mechanism must move freely.

• The transmission, clutch and clutch mechanism must be in proper condition.

• Transmission in neutral position.

Adjusting

- Open the ashtray.

- Carefully pry the cover off from the center console - arrow -.






- Lift the cover upward over shift knob.

- Move the shift lever in neutral position toward the left in the gate of 1st/2nd gear.

- Move the noise insulation to the side.

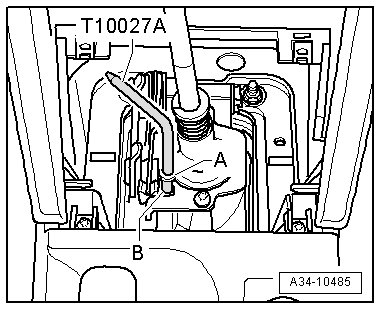

- Lock the shift lever with the (T10027A).

• To improve clarity, the noise insulation is removed.

Vehicles with an Air Filter Housing in Front of the Battery

- Remove the entire air filter housing.






Continued for All Vehicles

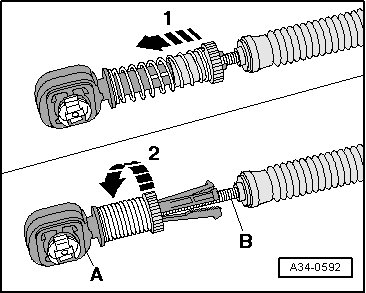

- Release the cable retainer - A - for the selector and shift cables - B - as follows:






- Push sleeve forward up to the stop - arrow 1 -.

- Turn sleeve to the right up to the stop - arrow 2 - so that it engages.

• The cable - B - must be able to move in the cable retainer.

Secure shift rod as follows:

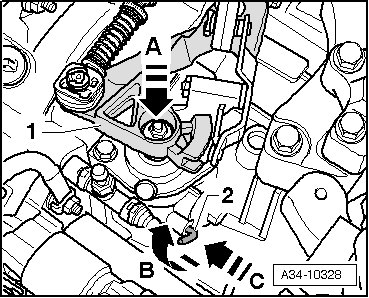

- Press transmission shift lever - 1 - down in direction of - arrow A -.






- Engage lock elbow - 2 - by turning slightly in direction of - arrow B - and pressing in direction of - arrow C - at the same time.

This locks the selector shaft; it can no longer be moved.

- Make sure that the selector and shift cable - B - are inserted free of tension in the retainer - A -.

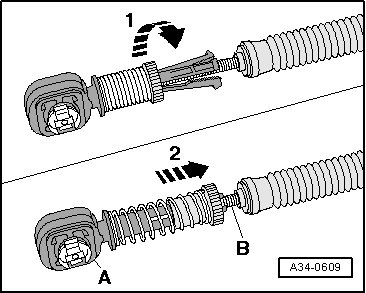

- Loosen the sleeve - arrow 1 -.

- Allow the sleeve to slide to the stop - arrow 2 -.

The cable is now adjusted.

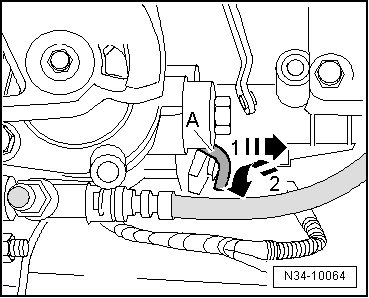

- Turn lock elbow - A - back into starting position in direction of - arrow 2 - and remove from transmission in direction of - arrow 1 -.






- Pull the Connecting Pin (T10027 A) out of the selector mechanism.

Shift Lever Adjustment, Checking

• The shift lever must rest in the 3rd/4th gear selector lever gate when the transmission is in neutral.

- Actuate clutch.

- Select all gears several times. Pay particular attention to the operation of the reverse gear lock

• The shift lever must move from the reverse gear selector lever gate into the 3rd/4th gear selector lever gate on its own.

If hooking occurs during repeated selection of a gear, the selector mechanism must be adjusted again.

- Install the selector lever boot.

- Install the air filter housing.
