Differential: Tools and Equipment

Special Tools






Special tools, testers and auxiliary items required

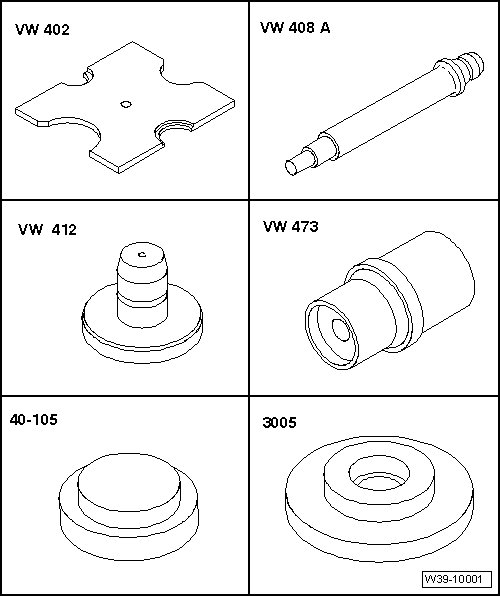

• Pressure Plate (VW 402)

• Punch (VW 408 A)

• Punch (VW 412)

• Transmission with right stub shaft: Thrust Piece (VW 473)

• Thrust Piece (40 - 105)

• Thrust Piece (3005)






Special tools, testers and auxiliary items required

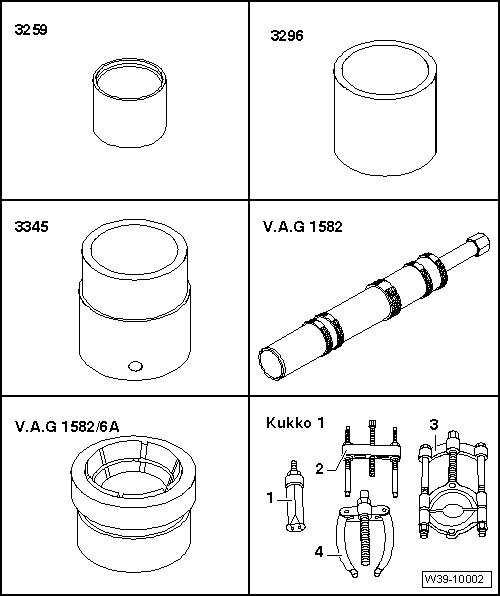

• Tube (3259)

• Tube (3296)

• Tube For Wheel Bearing (3345)

• Taper Roller Bearing Puller (V.A.G 1582)

• Attachment (V.A.G 1582/6A)

• - 1 - Internal Puller 46 to 58 mm (Kukko 21/7)

• - 2 - Puller (Kukko 18/1)

• - 3 - Separating Tool 12 to 75 mm (Kukko 17/1)

• - 4 - Counter-Support (Kukko 22/2)






Special tools, testers and auxiliary items required

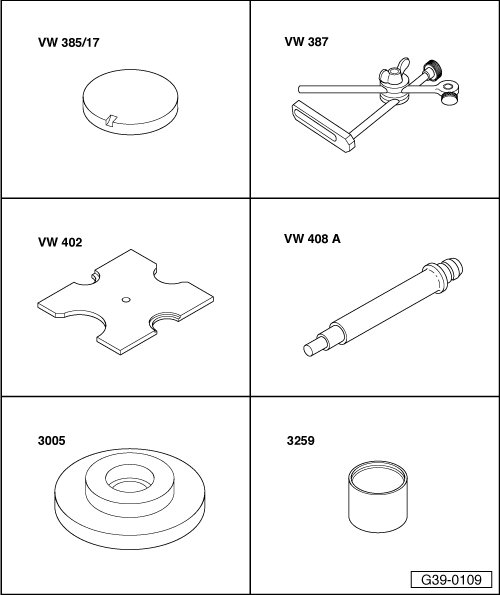

• Magnetic Plate (VW 385/17)

• Dial Gauge Holder (VW 387)

• Pressure Plate (VW 402)

• Punch (VW 408 A)

• Thrust Piece (3005)

• Tube (3259)

Special tools, testers and auxiliary items required

• Thrust Piece (3305)

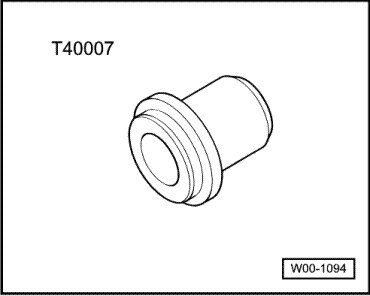

• Thrust Piece (T40007)

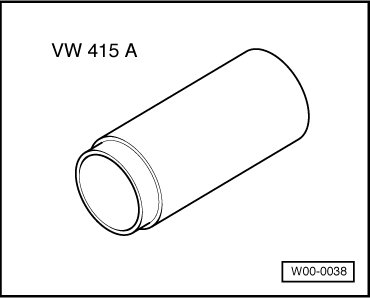

• Sleeve (VW 415 A) Transmission with right flange shaft






• Extractor Lever (T20143/2)

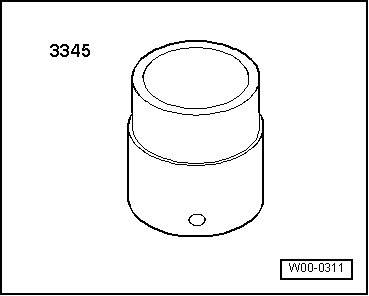

• Tube for Wheel Bearing (3345)
















Edition 5 25 2012
