Powertrain Overview

Powertrain Overview

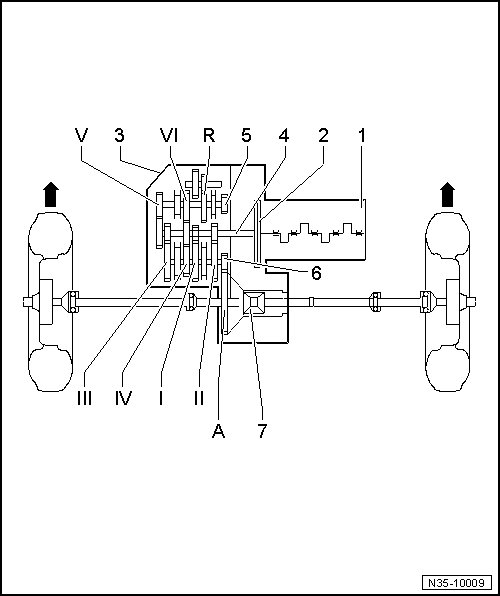

Designation

• - Arrows - point in direction of travel.






1 - Engine

2 - Clutch

3 - Manual Transmission

4 - Input Shaft

5 - Output Shaft II - 5th/6th and Reverse Gears

6 - Output Shaft I, 1st to 4th Gears

7 - Differential

Gear ratios

• - Arrows - point in direction of travel.






I - 1st Gear

II - 2nd Gear

III - 3rd Gear

IV - 4th Gear

V - 5th Gear

VI - 6th Gear

R - Reverse Gear

A - Final Drive
