Grooved Ball Bearing Changes

Grooved Ball Bearing Changes

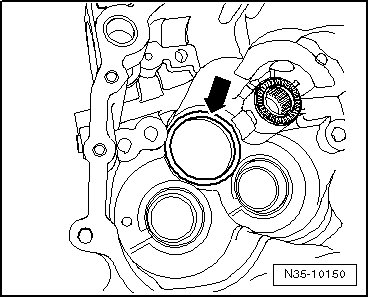

From transmission build date 4.10.06 through approximately 1.21.08 A washer above and below the grooved ball bearing seat - item 6 - => [ (Item 6) Grooved Ball Bearing ] Input Shaft Overview.

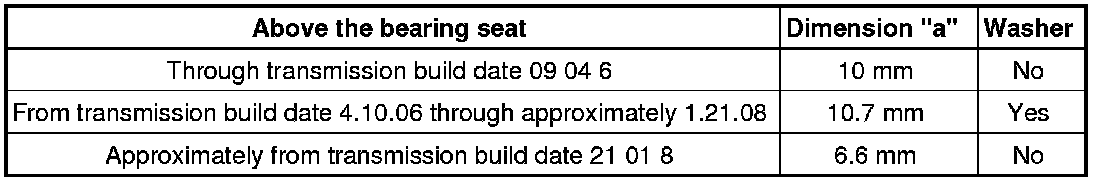

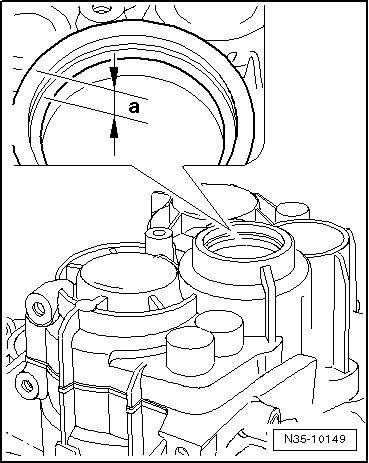

Above the Bearing Seat

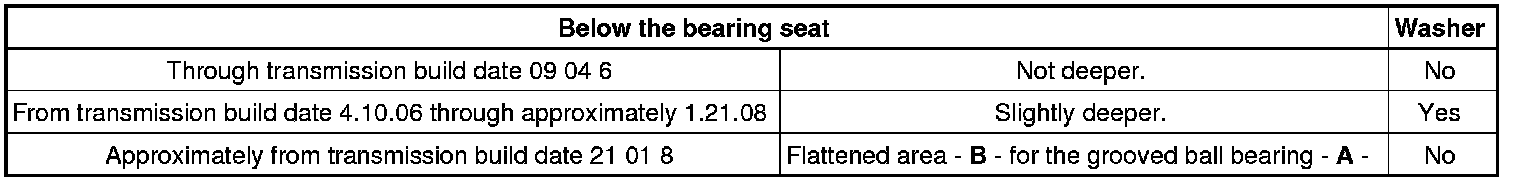

Below the bearing seat - arrow -:

Slightly Deeper from Transmission Build Date 4.10.06 through Approximately 1.21.08





The grooved ball bearing seat - arrow - is slightly deeper to hold the washer under the bearing => [ (Item 6) Grooved Ball Bearing ] Input Shaft Overview.

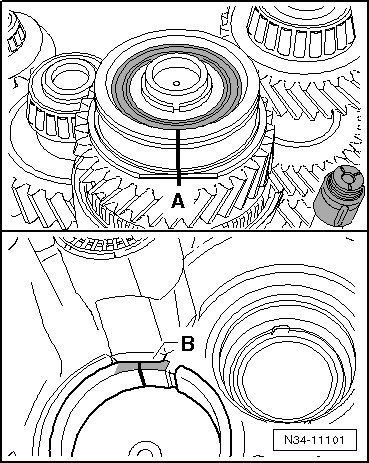

Flattened Areas on the Grooved Ball Bearing - A - and Bearing Seat - B - in the Transmission Housing Approximately from Transmission Build Date 2.21.08.





• If the flattened areas are present, do not insert any washers above and below the grooved ball bearing.
