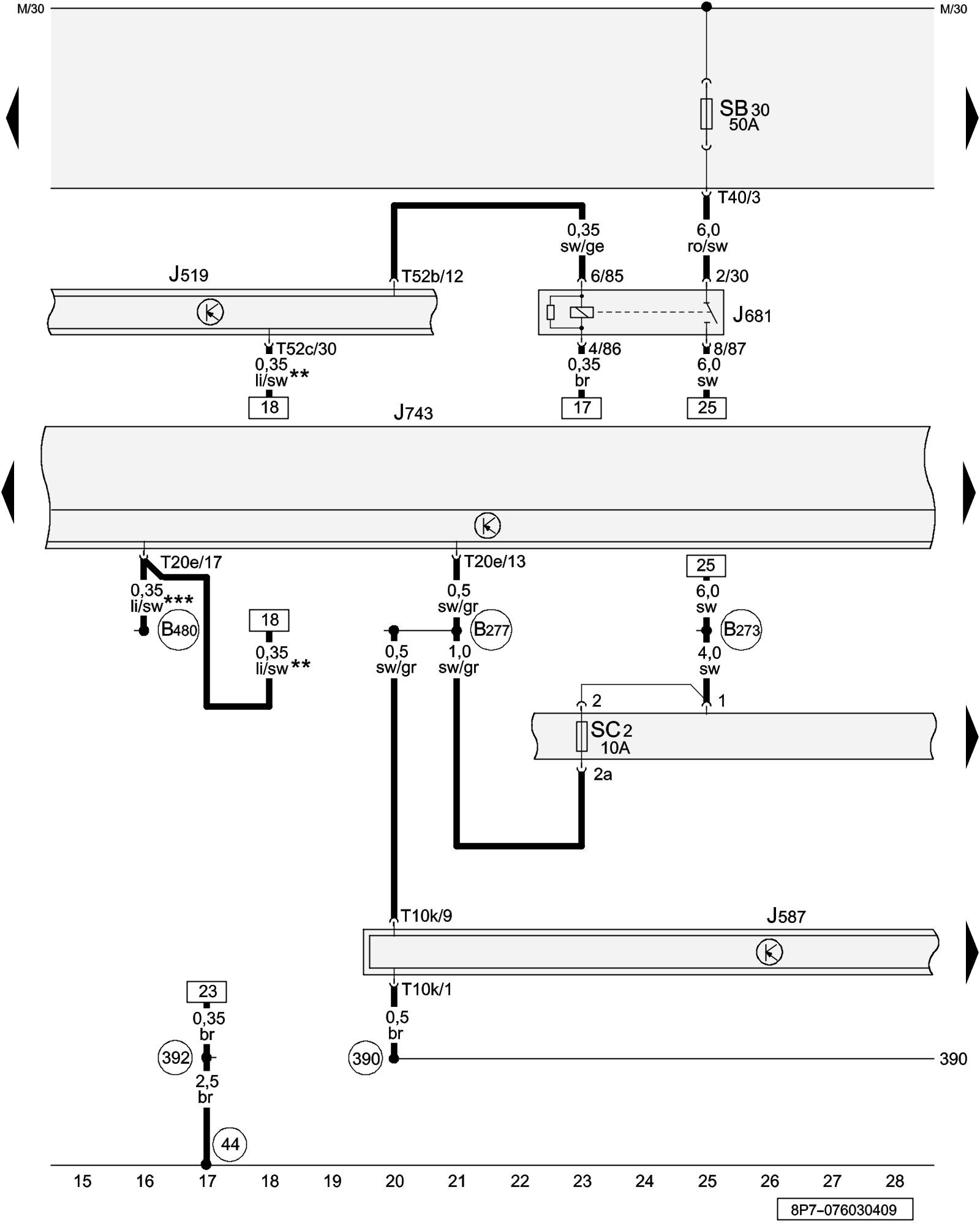

Diagram 76/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Power Supply (terminal 15), Selector Lever Sensor Control Module, Direct Shift Gearbox (DSG) Mechatronic





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J587 - Selector Lever Sensor Control Module

J681 - Power Supply Relay 2 (terminal 15) Overview Of Relay

J743 - Direct Shift Gearbox (DSG) Mechatronic Control Modules in Front Part Of Vehicle

SB30 - Fuse 30 (on fuse panel B) Overview Of Fuses

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

T10k - 10-Pin Connector, black (Connector A)

T20e - 20-Pin Connector, black (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

T52b - 52-Pin Connector, white (Connector B)

T52c - 52-Pin Connector, brown (Connector C)

(44) - Ground Connection (on left lower A-pillar)

(390) - Ground Connection 25 (in main wiring harness)

(392) - Ground Connection 27 (in main wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

(B277) - Plus Connection 1 (15a) (in main wiring harness)

(B480) - Connection 16 (in main wiring harness)

** - Only models without stop/start system

*** - Only models with stop/start system => Applicable Wiring Diagram Engine

# - Only models with electronics box Low

## - Only models with electronics box High
