Selector Lever Handle With Selector Level Boot, Selector Lever Scale Illumination Bulb (L101) Overview, up to 11.2009

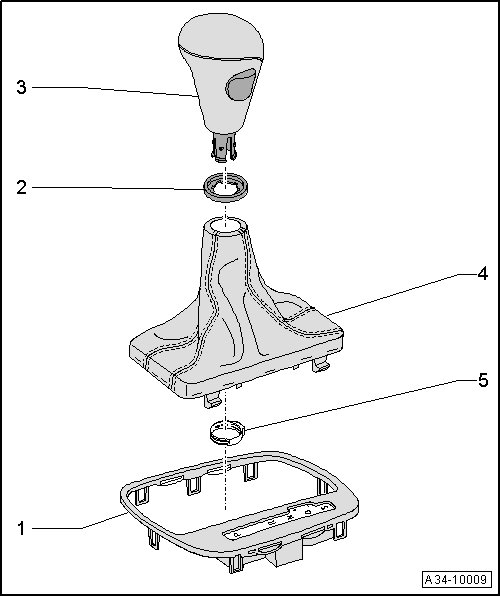

Selector Lever Handle with Selector Level Boot, Selector Lever Scale Illumination Bulb (L101) Overview, up to 11.2009






1 Cover Frame with Selector Lever Scale Illumination Bulb (L101)

• Refer to => [ Selector Lever Scale Illumination Bulb (L101), Vehicles with Selector Lever Boots ] Selector Lever Scale Illumination Bulb (L101), Vehicles With Selector Lever Boots

2 Decorative Ring

• Removing and installing, refer to => [ Selector Lever Handle, with Selector Lever Boot ] Selector Lever Handle, With Selector Lever Boot

3 Selector Lever Handle

• Refer to => [ Selector Lever Handle, with Selector Lever Boot ] Selector Lever Handle, With Selector Lever Boot

4 Selector Lever Boot

• Refer to => [ Selector Lever Boot, Separating from Selector Lever Handle, Vehicles with Selector Lever Boots ] Selector Lever Boot, Separating From Selector Lever Handle, Vehicles With Selector Lever Boots

5 Clamp

• For securing the selector lever handle to the selector lever

• Removing and installing, refer to => [ Selector Lever Handle, with Selector Lever Boot ] Selector Lever Handle, With Selector Lever Boot
